Pepperl+Fuchs
Pozisyonlama Sistemleri

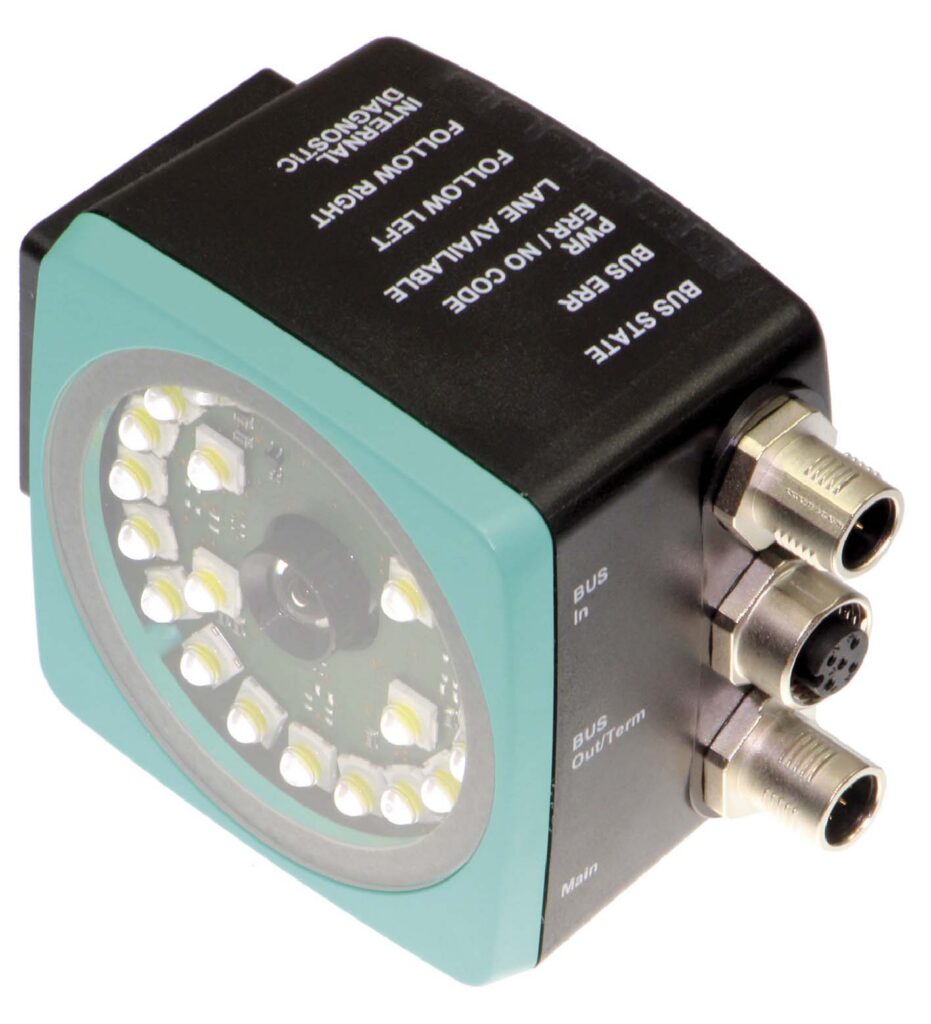

PGV100-F200A-B16-V15
| Passage speed | ≤ 8 m/s |
|---|---|
| Measuring Uzunluk | max. 10000 m |
| Işık tipi | Integrated LED lightning (beyaz/mavi) |
| Scan rate | 25 s-1 |
| Latency | 60 ms |
Optical reading head
- Mechanically rugged: no wearing parts, long operating life, maintenance-free
- CANopen interface
- Non-contact positioning on Data Matrix code tape
- Noncontact positioning with Data Matrix TAGs
- Noncontact lane tracking of a colored strip
- Reading of Data Matrix control codes
- beyaz-mavi light
Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, CANopen interface, Non-contact positioning on Data Matrix code tape, Noncontact positioning with Data Matrix TAGs, Noncontact lane tracking of a colored strip, Reading of Data Matrix control codes, beyaz-mavi light
PGV100-F200A-B16-V15
| Passage speed | ≤ 8 m/s |
|---|---|
| Measuring Uzunluk | max. 10000 m |
| Işık tipi | Integrated LED lightning (beyaz/mavi) |
| Scan rate | 25 s-1 |
| Latency | 60 ms |
| Read distance | 100 mm |
| Reading field | 120 mm x 80 mm |
| Ortam ışığı limiti | 100000 Lux |
| Type | CMOS , Global shutter |
| Clock pulse frequency | 600 MHz |
| Speed of computation | 4800 MIPS |
| Digital resolution | 32 Bit |
| MTTFd | 92 a |
| Görev süresi (TM) | 10 a |
| Tanı kapsamı (DC) | 0 % |
| LED indication | 7 LEDs (communication, alignment aid, status information) |
| Çalışma gerilimi | 15 ... 30 V DC , PELV |
| Boşta besleme akımı | max. 400 m A |
| Power consumption | 6 W |
| Interface type | CANopen , galvanically isolated |
| Data output code | binary code |
| Transfer rate | max. 1 MBit/s |
| Input type | 1 funtion input · 0-level: -UBor unwired · 1-level: +8 V ... +UB , programmable |
| Input impedance | ≥ 27 kΩ |
| Çıkış tipi | 1 to 3 switch outputs , programmable , kısa devre korumalı |
| Anahtarlama gerilimi | Çalışma gerilimi |
| Anahtarlama akımı | 150 m A each output |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Photobiological safety | Risk group 1 according to EN 62471:2008 |
| CE conformity | CE |
| UL onayı | c ULus Listed, Sınıf 2 güç kaynağı, Type 1 enclosure |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Operating temperature | 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!) |
| Relative humidity | 90 % , non-condensing |
| Bağlantı tipi | 8-pin, M12x1 connector, standard (supply+IO) · 5-pin, M12x1 socket, A-coded (bus out/termination) · 5-pin, M12x1 connector, A-coded (bus in) |
| Koruma sınıfı | IP67 |
| Gövde | PC/ABS |
| Ağırlık | yak. 200 g |
| Yükseklik | 70 mm |
| Genişlik | 70 mm |
| Depth | 50 mm |
| X resolution (protocol) | 0.1 mm |
| Y resolution (protocol) | 0.1 mm |
| Speed resolution (protocol) | 0.1 m/s |
| Angle resolution | 0.1 ° |
| Baud rate | 500 k Bit/s |
| Extrapolation | On |
| Read head address | 3 |
