Pepperl+Fuchs
Pozisyonlama Sistemleri
PGV85-CT4
| Number interval | 1 ... 99999999 = TAG number (see order information) |
|---|---|
| Uzunluk | 87 mm |
| Genişlik | 87 mm |
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Montaj temperature | 10 ... 40 °C (50 ... 104 °F) |

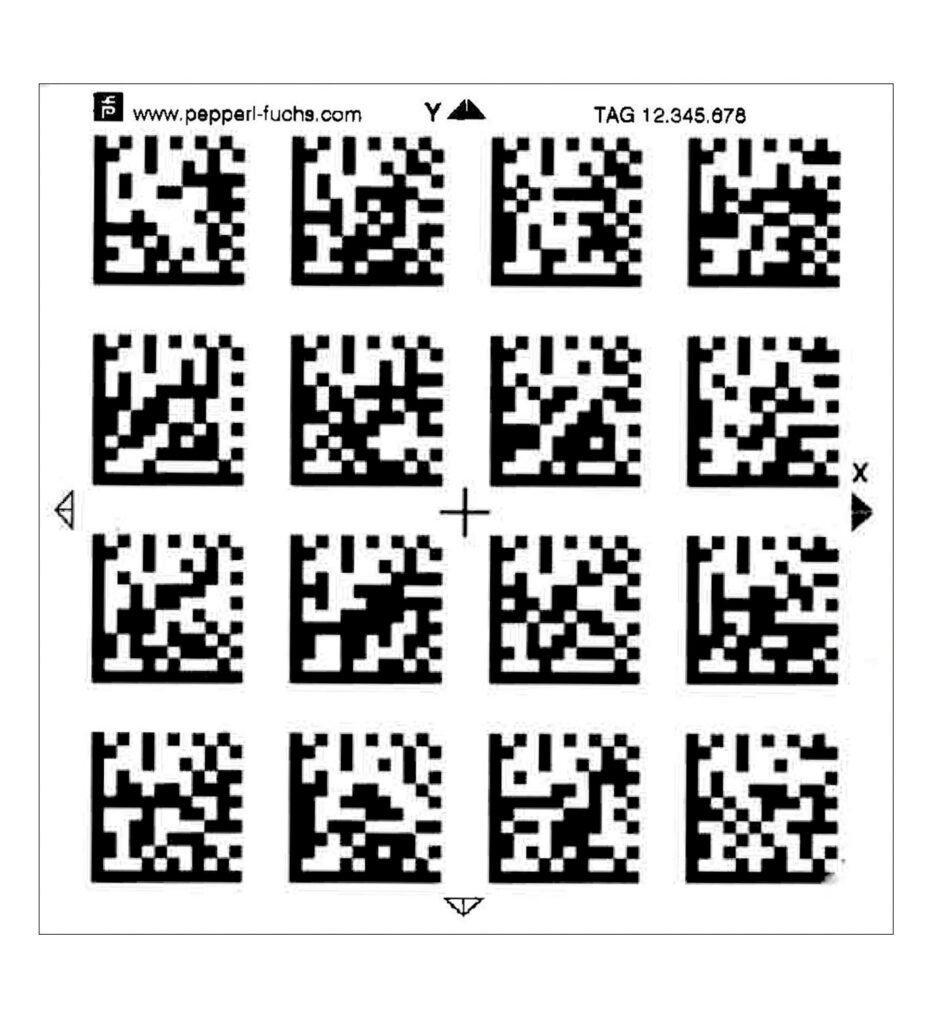

Data Matrix tag
- High chemical resistance
- Low weight
- Self-adhesive mounting
- High temperature resistance
Data Matrix tag for PGV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance
PGV85-CT4
| Number interval | 1 ... 99999999 = TAG number (see order information) |
|---|---|
| Uzunluk | 87 mm |
| Genişlik | 87 mm |
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Montaj temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation · Humidity · Salt spray (150 h / 5%) |
| Chemical resistance | Oils · Grease · Fuels · Aliphatic solvents · Weak acids |
| Malzeme thickness | 100 µm |
| Malzeme | polyester |
| Surface | polyester , glossy |
| Tensile strength | ≥ 50 N |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) · Aluminum : 24 N / 25 mm · High grade stainless steel : 25 N / 25 mm · ABS : 22 N / 25 mm · PP : 18 N / 25 mm · HD-PE : 12 N / 25 mm · LD-PE : 12 N / 25 mm |
| Note | To improve readability and protect the Data Matrix tag from mechanical damage, the protective film PGV25M-CD160-CLEAR must be adhered over the Data Matrix tag. |
| Order information | The required tag numbers are entered in the additional text for the job in the form of the start and end position. The order quantity must match the specified range. |
