Pepperl+Fuchs
RFID

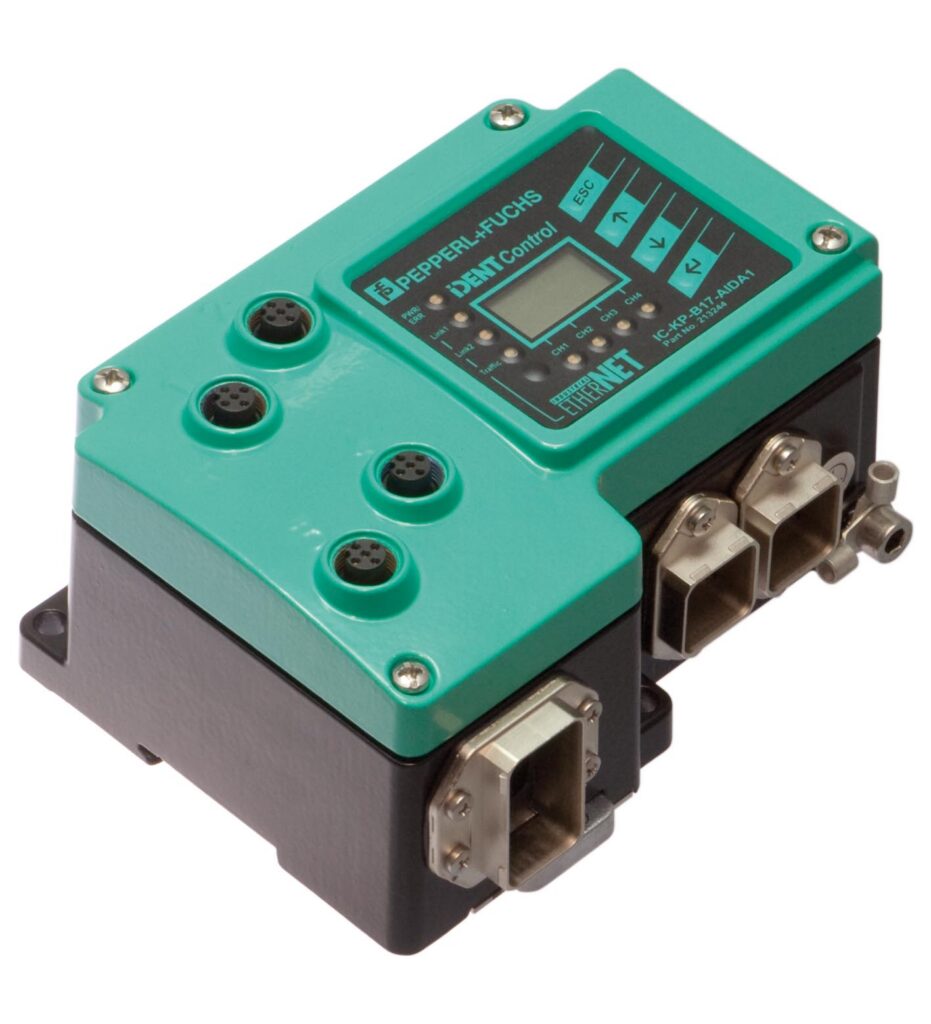

IC-KP-B17-AIDA1
| Number of read/write heads | max. 4 · alternative 2 read/write heads and 2 trigger sensors |
|---|---|
| UL File Number | E87056 |
| MTBF | 55 a (Operation at +40 °C) |
| LEDs CH1, CH2, CH3, CH4 | Status indicator for read/write heads · yeşil: command at read/write head active · sarı: yak. 1 second long, if command was successfully executed |
| LED PWR/ERR | yeşil: power on · kırmızı: PROFINET bus failure |
RFID evaluation unit
- Max. 4 read/write heads connectable
- Alternative 2 read/write heads and 2 trigger sensors can be connected
- LED status indicator of bus communication and read/write heads
- TCP/IP, MODBUS/TCP, Ether Net/IP and PROFINET IO protocol
- Connector acc. to AIDA specifications
- Integrated switch allows line topology
IDENTControl control interface with Ethernet interface for TCP/IP, PROFINET, Ether Net/IP, and MODBUS TCP protocols
IC-KP-B17-AIDA1
| Number of read/write heads | max. 4 · alternative 2 read/write heads and 2 trigger sensors |
|---|---|
| UL File Number | E87056 |
| MTBF | 55 a (Operation at +40 °C) |
| LEDs CH1, CH2, CH3, CH4 | Status indicator for read/write heads · yeşil: command at read/write head active · sarı: yak. 1 second long, if command was successfully executed |
| LED PWR/ERR | yeşil: power on · kırmızı: PROFINET bus failure |
| LED Traffic | yeşil: flashes in rhythm with the transmitted data |
| LC display | two-line multi-function display with 12 characters per line · configuration of the control interface and display of connected read/write heads as additional pictograms; easy and direct selection of operating commands |
| Button | 4 keys: ESC, up, down and return |
| Rated Çalışma gerilimi | 20 ... 30 V DC , PELV |
| Ripple | ≤ 10 % at 30 V DC |
| Current consumption | ≤ 8 A incl. read/write heads |
| Power consumption | 3.5 W Without read/write heads |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff |
| Physical | Ethernet |
| Protocol | SMTP · HTTP · TCP/IP (Port 10000) · MODBUS/TCP · Ether Net/IP · PROFINET IO |
| Transfer rate | 10 MBit/s or 100 MBit/s |
| Directive 2014/30/EU | EN 61326-1 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | IEC 60529 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -30 ... 80 °C (-22 ... 176 °F) |
| Climatic conditions | air humidity max. 96 % |
| Shock and impact resistance | Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 · Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 |
| Bağlantı | Read/write heads: shielded, 4-pin, M12 connector · Power supply: MSTB AIDA · Protective earth: M6 earthing screw · Ethernet: RJ-45 AIDA |
| Gövde | powder coated aluminum |
| Montaj | snap-on to 35 mm standard rail or screw fixing |
| Ağırlık | yak. 1000 g |
| Yükseklik | 73 mm |
| Genişlik | 105 mm |
| Uzunluk | 148 mm |
