Pepperl+Fuchs
RFID

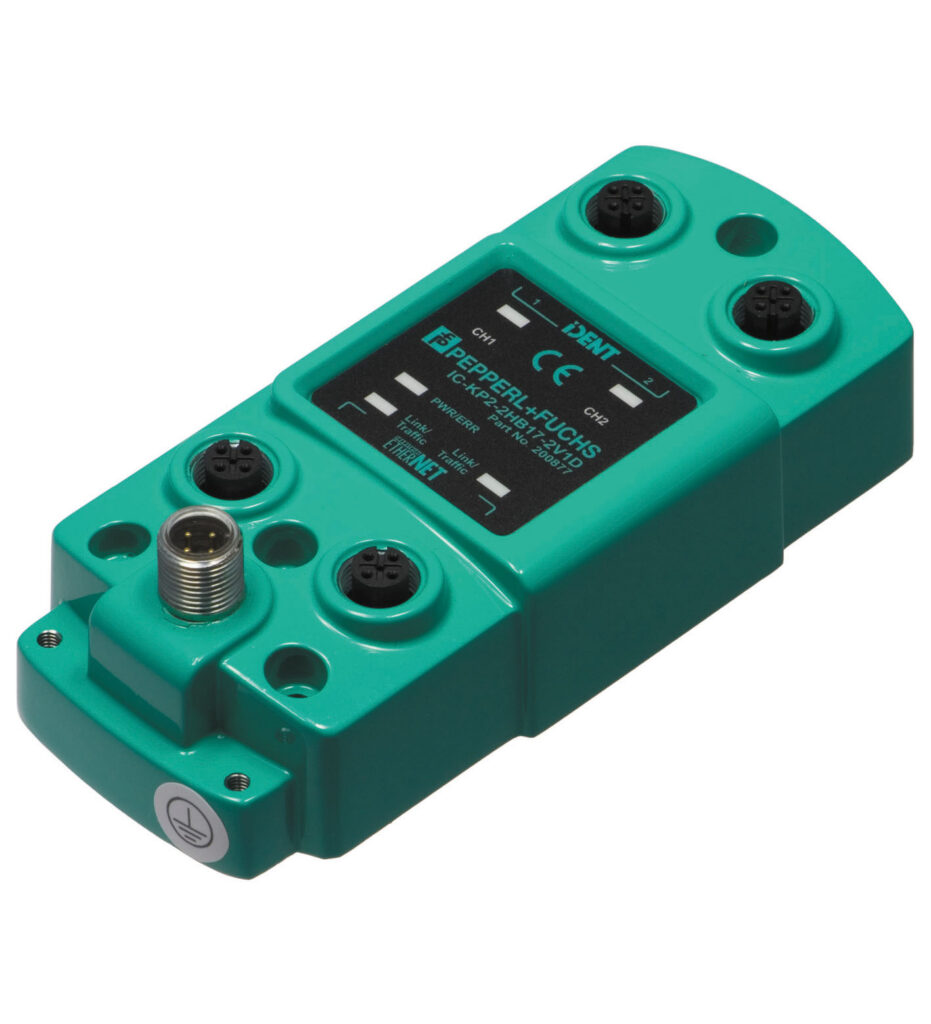

IC-KP2-2HB17-2V1D
| Number of read/write heads | max. 2 · alternatively 1 read/write head and 1 trigger sensor |
|---|---|
| UL File Number | E87056 |
| MTBF | 70 a (Operation at +40 °C) |
| LED Link/Traffic | yeşil: network Bağlantı · sarı: flashes in rhythm with the transmitted data |
| LEDs 1, 2 | Status indicator for read/write heads · yeşil: command at read/write head active · sarı: yak. 1 second long, if command was successfully executed |
RFID evaluation unit
- LED status indicator of bus communication and read/write heads
- Network loop through by means of integrated 2 port switch
- Max. 2 read/write heads can be connected
- Alternatively 1 read/write head and 1 trigger sensor can be connected
IDENTControl Compact control interface with Ethernet interface for TCP/IP, PROFINET, Ether Net/IP, and MODBUS TCP protocols
IC-KP2-2HB17-2V1D
| Number of read/write heads | max. 2 · alternatively 1 read/write head and 1 trigger sensor |
|---|---|
| UL File Number | E87056 |
| MTBF | 70 a (Operation at +40 °C) |
| LED Link/Traffic | yeşil: network Bağlantı · sarı: flashes in rhythm with the transmitted data |
| LEDs 1, 2 | Status indicator for read/write heads · yeşil: command at read/write head active · sarı: yak. 1 second long, if command was successfully executed |
| LEDs CH1, CH2 | yeşil: read head detected · kırmızı: Configuration error |
| LED PWR/ERR | yeşil: power on · sarı: system is starting · kırmızı: PROFINET bus failure |
| Rotary switch | Address setting |
| Rated Çalışma gerilimi | 20 ... 30 V DC , PELV |
| Ripple | ≤ 10 % at 30 V DC |
| Current consumption | ≤ 4 A incl. read/write heads |
| Power consumption | 3.5 W Without read/write heads |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff |
| Physical | Ethernet |
| Protocol | SMTP · HTTP · TCP/IP (Port 10000) · MODBUS/TCP · Ether Net/IP · PROFINET IO |
| Transfer rate | 10 MBit/s or 100 MBit/s |
| Directive 2014/30/EU | EN 61000-6-2 · EN 61000-6-4 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | IEC 60529 |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Climatic conditions | air humidity max. 96 % · Salt spray resistant to EN 60068-2-52 |
| Shock and impact resistance | Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 · Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 |
| Bağlantı | Read/write heads: shielded, 4-pin, M12 connector · Power supply: M12 connector · Protective earth: M4 earthing screw · Ethernet: M12 plug Bağlantı |
| Gövde | powder coated aluminum |
| Montaj | screw fixing |
| Ağırlık | yak. 300 g |
| Yükseklik | 42 mm |
| Genişlik | 62 mm |
| Uzunluk | 137 mm |
