Pepperl+Fuchs
RFID
IUT-F190-B40-2V1D-FR1-01
| Operating frequency | 865 … 868 MHz: EU, Turkey · Transmission licenses for other countries on request |
|---|---|
| Emitted power | 3 ... 1000 m W ERP ayarlanabilir |
| MTBF | 55 a (Operation at +40 °C) |
| LED yeşil | Power on |
| LED sarı | Read/write operation successful |
RFID read/write device
- Compact, high-performance UHF RFID read/write device for medium Algılama menzilis
- Rugged Gövde for harsh industrial environments
- Switchable antenna polarization and multi-tag reading
- Clearly visible LED status indicator
- Integrated 2-port switch enables line or ring topology
- Simple operation and configuration via integrated web server
- OPC UA Server and Auto ID Companion Specification enable standardized communication
- Easy integration into IT systems via REST API

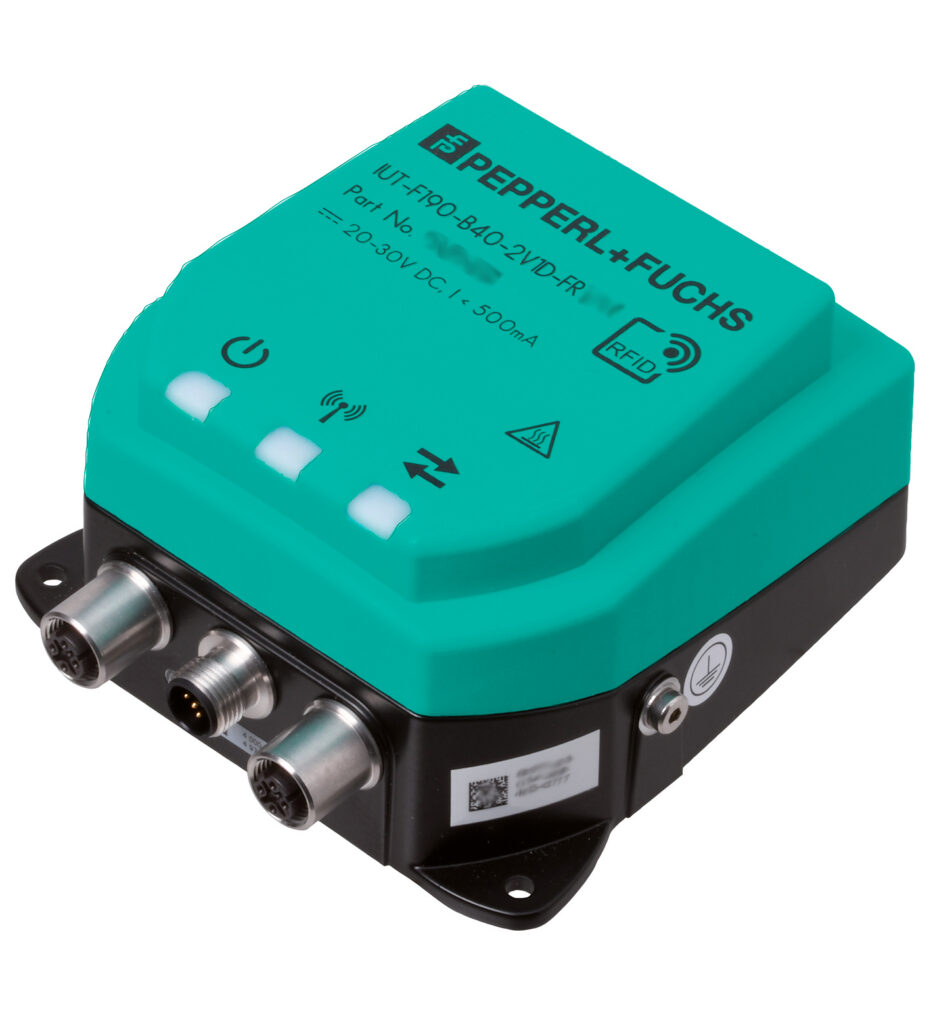

UHF RFID read/write device, Europe
IUT-F190-B40-2V1D-FR1-01
| Operating frequency | 865 … 868 MHz: EU, Turkey · Transmission licenses for other countries on request |
|---|---|
| Emitted power | 3 ... 1000 m W ERP ayarlanabilir |
| MTBF | 55 a (Operation at +40 °C) |
| LED yeşil | Power on |
| LED sarı | Read/write operation successful |
| LED mavi | Transmission mode |
| LED Link/Traffic | yeşil: network Bağlantı · sarı: flashes in rhythm with the transmitted data |
| Rated Çalışma gerilimi | 20 ... 30 V DC , PELV |
| Ripple | ≤ 10 % at 30 V DC |
| Current consumption | ≤ 500 m A |
| Power consumption | ≤ 10 W |
| Surge protection | category 2 |
| Physical | Ethernet |
| Protocol | HTTP (REST API) · OPC UA (Auto ID Companion Specification) · Ether Net/IP · PROFINET IO |
| Transfer rate | 10 MBit/s or 100 MBit/s |
| Directive 2014/53/EU | EN 301489-1 · EN 301489-3 · EN 302208 · EN 62368-1 · EN 62311 · EN 50364 |
| Directive 2011/65/EU (Ro HS) | IEC/EN 63000 |
| Koruma sınıfı | EN 60529 |
| RFID | ISO/IEC 18000-63 |
| Classification | Environmental condition A (controlled environment) |
| Ortam sıcaklığı | -20 ... 70 °C (-4 ... 158 °F) (Operation with nontransmission periods, ayarlanabilir) · -20 ... 50 °C (-4 ... 122 °F) (Continuous transmission mode) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Pollution degree | 2 |
| Bağlantı | Power supply: M12 connector · Protective earth: M4 earthing screw · Ethernet: M12 plug Bağlantı |
| Gövde | PA 6.6 |
| Base | diecast aluminum |
| Ağırlık | 770 g |
| Yükseklik | 63 mm |
| Genişlik | 112 mm |
| Uzunluk | 114 mm |
