VAA-2E1A-CB10-SJ/E2J-FL
| Node type | Safety-Slave |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| UL File Number | E223772 |
| Safety Integrity Level (SIL) | SIL 3 |
AS-Interface safety module
- Bağlantı of contact safety switches, e.g. EMERGENCY STOP button
- Modular safety solution
- Ultra-compact enclosure
- Applications en fazla Cat. 4, PL e/SIL 3

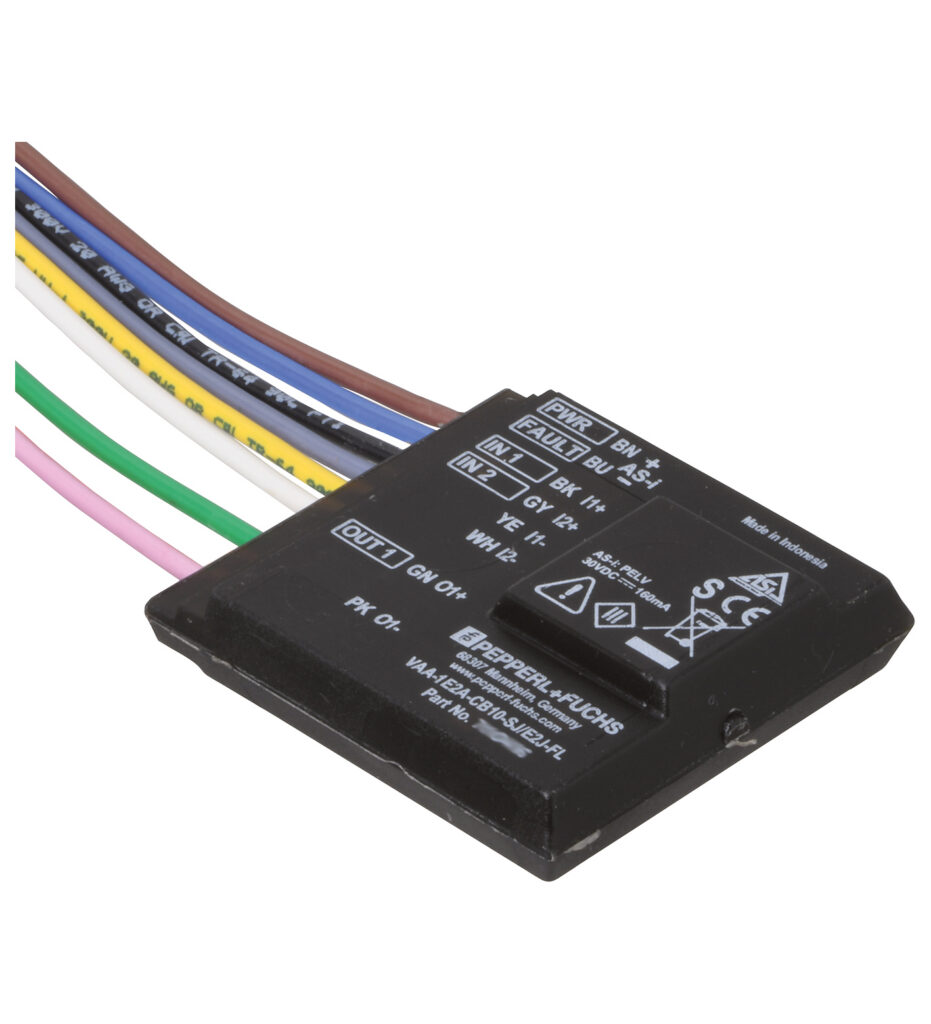

CB10 safety module, 2 safety-related inputs and 1 conventional electronic output
VAA-2E1A-CB10-SJ/E2J-FL
| Node type | Safety-Slave |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| UL File Number | E223772 |
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| MTTFd | no significant contribution to MTTFd of the overall system |
| Görev süresi (TM) | 20 a |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 |
| LED PWR | AS-Interface voltage; yeşil LED · yeşil: voltage OK · flashing yeşil: address 0 |
| LED IN | switching state (input); 2 LED sarı |
| LED OUT | Switching state (output); LED sarı |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface (PELV) |
| Rated Çalışma akımı | ≤ 40 m A (without inputs/outputs)/max. 160 m A |
| Protection class | III |
| Surge protection | Ue: Over voltage category III, safe isolated power supplies (PELV) |
| Rated insulation voltage | 32 V |
| Pulse withstand voltage | 0.8 k V |
| Number/Type | 2 safety-related inputs for mechanical contacts, crossed-circuit monitored: · 2 single-channel contacts: en fazla category 2/PLc in accordance with ISO 13849-1 or SIL 1 in accordance with IEC 62061 · 1 two-channel contact: en fazla category 4/PLe in accordance with ISO 13849-1 or SIL 3 in accordance with IEC 62061 |
| Supply | from AS-Interface |
| Voltage | 20 ... 30 V DC pulsed |
| Current | input current limited ≤ 15 m A, · kısa devre korumalı |
| Directive 2014/30/EU | IEC 62026-2:2013 · EN 61000-6-2:2005 · EN 61000-6-4:2007 · EN 61326-1:2013 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Electrical safety | IEC 61140:2009 |
| Emitted interference | EN 61000-6-4:2007 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | IEC 62026-2:2013 · EN 61326-3-1:2017 · EN 61000-6-2:2005 |
| Functional safety | EN ISO 13849-1:2023 · EN IEC 62061:2021 |
| Profile | S-7.B |
| IO code | 7 |
| ID code | B |
| ID1 code | F |
| ID2 code | 0 |
| Data bits (function via AS-Interface) | Input Output |
| D0 | dyn. safety code 1 OUT 1 |
| D1 | dyn. safety code 1 - |
| D2 | dyn. safety code 2 - |
| D3 | dyn. safety code 2 - |
| Parameter bits (programmable via AS-i) | function |
| P0 | not used |
| P1 | not used |
| P2 | not used |
| P3 | not used |
| UL onayı | Protection class IP20 is not included in the UL onayı. The protection class is tested by Pepperl+Fuchs. |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 5000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, · 1000 shocks |
| Vibration resistance | 0.35 mm 10 ... 57 Hz , 5 g 57 ... 2000 Hz, 10 cycles |
| Pollution degree | 2 |
| Bağlantı | 200 mm, PVC Kablo 0.5 mm2 |
| Contacts | open conductor ends ferül ile |
| Gövde | Polyamide hot-melt adhesive |
| Ağırlık | 28 g |
| Yükseklik | 10.1 mm |
| Genişlik | 36 mm |
| Uzunluk | 39.5 mm |
| Kablo uzunluğu | Input , output: max. 30 m |
| Note | This device is maintenance-free. If the device is used in a manner not specified by the manufaturer, the protection provided by the device may be impaired. |
