VAA-2E2A-G12-SAJ/EA2L
| Node type | Safety node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-7.B |
| IO code | 7 |
AS-Interface safety module
- Switchable internal logic operation of the inputs and outputs via parameter bit
- One-piece Gövde with stainless steel base
- Montaj without tools
- Metal threaded inserts with SPEEDCON technology
- Flat Kablo Bağlantı with Kablo piercing technique, variable flat Kablo guide
- kırmızı LED per channel, lights up in the event of output overload
- Communication monitoring, configurable
- 2 safe inputs for mechanical contacts such as EMERGENCY-STOP switch
- DIN rail mounting
- AS-Interface certificate
- Applications en fazla Cat. 4, PL e/SIL 3
G12 safety module, 2 safety inputs and 2 standard electronic outputs

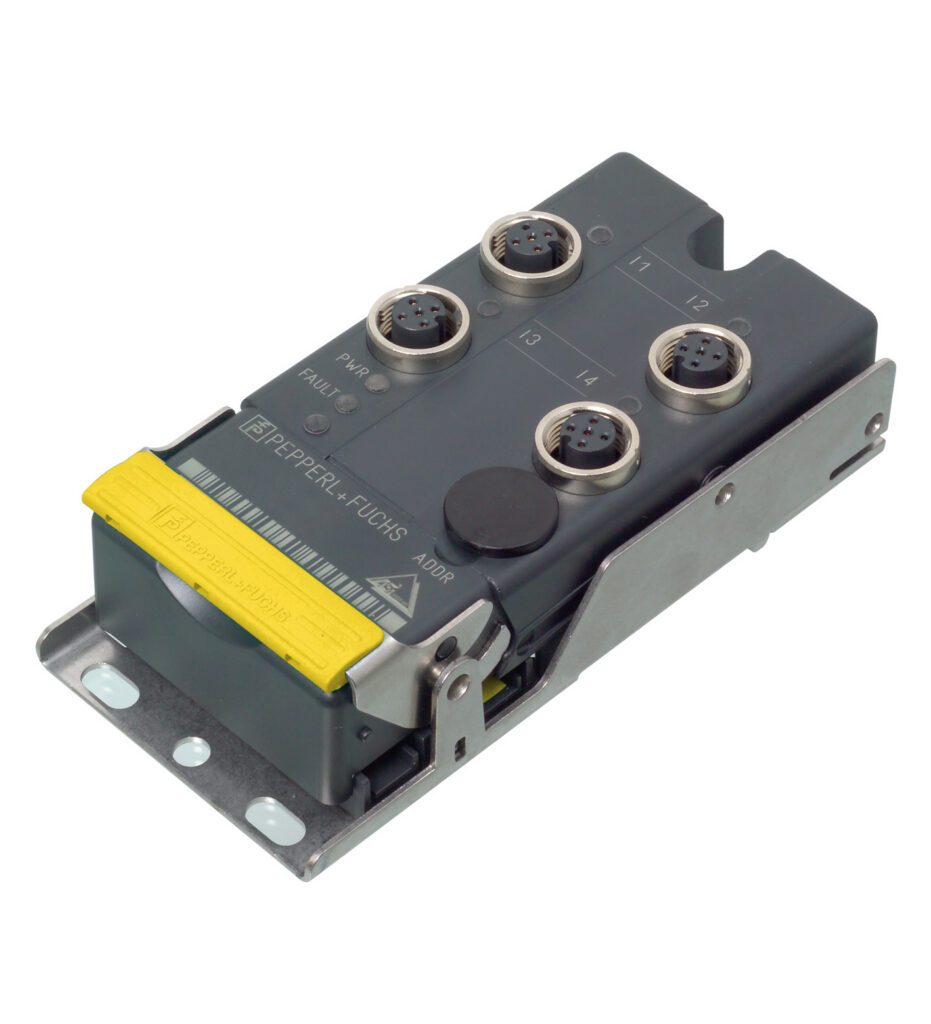

VAA-2E2A-G12-SAJ/EA2L
| Node type | Safety node |
|---|---|
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| Profile | S-7.B |
| IO code | 7 |
| ID code | B |
| ID1 code | F |
| ID2 code | 0 |
| UL File Number | E223772 |
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| MTTFd | no significant contribution to MTTFd of the overall system |
| LED FAULT | error display; LED kırmızı · kırmızı: communication error or address is 0 · kırmızı flashing: Output supply overload |
| LED PWR | AS-Interface voltage; yeşil LED · yeşil: voltage OK · flashing yeşil: address 0 |
| LED AUX | ext. auxiliary voltage UAUX; dual LED yeşil/kırmızı · yeşil: voltage OK · kırmızı: reverse voltage |
| LED IN | switching state (input); 2 LED sarı |
| LED OUT | Switching status (output); 2 sarı/kırmızı LEDs · sarı: output active · kırmızı: output overload |
| Auxiliary voltage (output) | 24 V DC ± 15 % PELV |
| Rated Çalışma gerilimi | 26.5 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 50 m A |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) derived from mains en fazla 300 V AC line-to-neutral |
| Rated insulation voltage | 40 V |
| Pulse withstand voltage | 0.5 k V |
| Number/Type | 2 safety-related inputs for mechanical contacts, crossed-circuit monitored: · 2 single-channel contacts: en fazla category 2/PL c to ISO 13849-1 or · 1 2-channel contact: en fazla category 4/PL e to ISO 13849-1 · Kablo uzunluğu must not exceed 300 m per input. |
| Supply | from AS-Interface |
| Voltage | 20 ... 30 V DC pulsed |
| Current loading capacity | input current limited ≤ 15 m A, · overload and short-circuit resistant |
| Current | 1.5 A per output , kısa devre korumalı |
| Directive 2014/30/EU | EN 62026-2:2013+A1:2019 · IEC 60947-5-3:1999 |
| Insulation coordination | EN 60947-1:2007 |
| Koruma sınıfı | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Electrical safety | IEC 60947-1, NFPA 79, IEC 60204-1:2007 |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| AS-Interface | EN 62026-2:2013+A1:2019 |
| Noise immunity | IEC 62026-2:2008 · EN IEC 62061:2021 · EN 61000-6-2:2005 |
| Functional safety | EN ISO 13849-1:2023 · EN IEC 61508:2010 · EN IEC 62061:2021 |
| Standartlar | NFPA 79:2007 ER 1 |
| Ortam sıcaklığı | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks · 10 g, 16 ms in 6 spatial directions 1000 shocks |
| Vibration resistance | 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles |
| Pollution degree | 3 |
| Bağlantı | Kablo piercing method · flat Kablo sarı/flat Kablo siyah · inputs/outputs: M12 round connector |
| Gövde | PBT |
| Ağırlık | 200 g |
| Sıkma torku, Kablo gland | 0.4 Nm |
| Yükseklik | 35 mm |
| Genişlik | 57.4 mm |
| Uzunluk | 118 mm |
| Mounting | Mounting plate |
