Pepperl+Fuchs
Safety

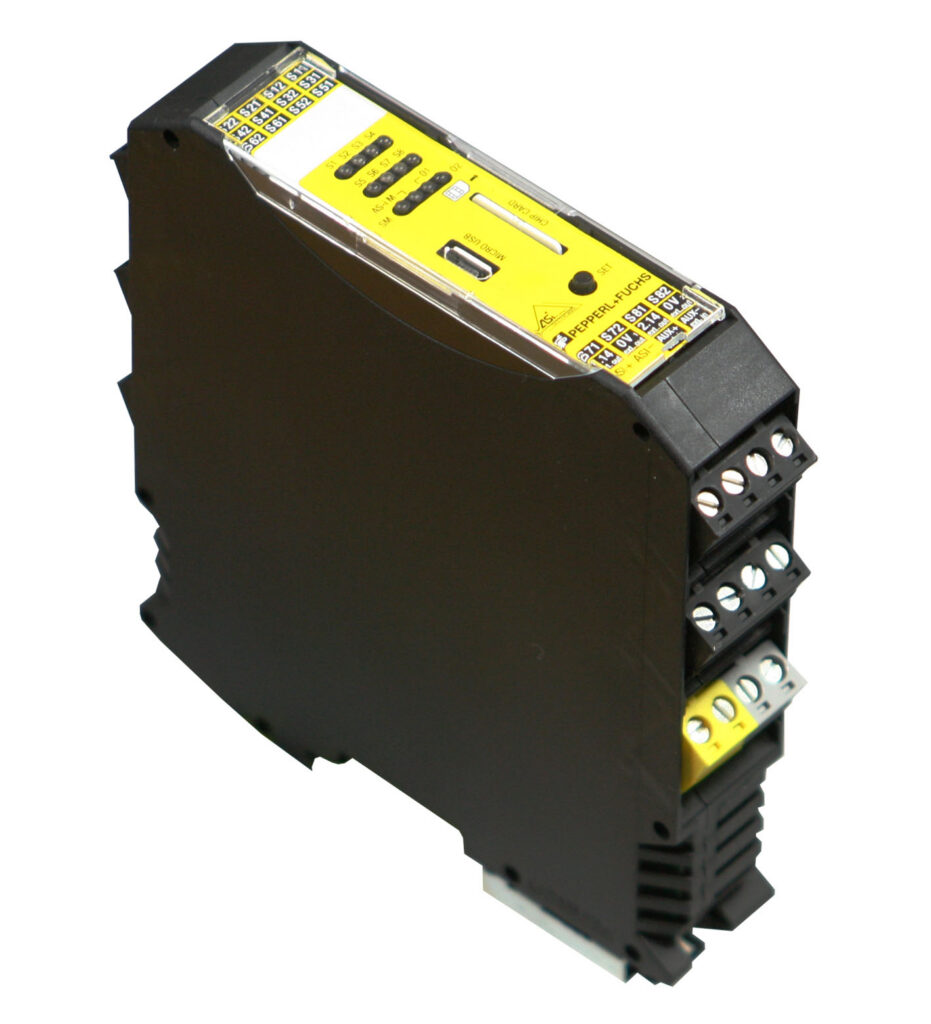

VAS-2A8L-KE4-8SE
| AS-Interface specification | V3.0 |
|---|---|
| UL File Number | E223772 |
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Görev süresi (TM) | 20 a |
AS-Interface Safety Monitor
- Compact safety controller en fazla SIL 3/PLe
- 4 integrated, safe inputs
- 2 integrated, safe outputs (OSSDs)
- 8 logical, safe output groups (switchable)
- Increased functionality through integrated expansion port
- Parameterizable muting, timer and logic functions using SIMON+ software
Safety Monitor, 8 decentralized output circuits
VAS-2A8L-KE4-8SE
| AS-Interface specification | V3.0 |
|---|---|
| UL File Number | E223772 |
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Görev süresi (TM) | 20 a |
| PFHd | 5.08 E-9 |
| LED SM | Status of safety monitor, multicolored LED · yeşil: Safety monitor OK |
| LED S1 ... S8 | Status of inputs S1 ... S8, sarı LED · sarı: Contact open |
| LED O1, O2 | Status of outlputs, multicolored LED · sarı: Output on |
| Auxiliary voltage (input) | 20 ... 30 VDC PELV |
| Insulation voltage | 500 V AS-Interface/UAUX: |
| Rated Çalışma gerilimi | 18,0 ... 31.6 V from AS-Interface |
| Rated Çalışma akımı | ≤ 200 m A from AS-Interface; · ≤ 4 A from AUX |
| Interface type | Chip card slot |
| Number/Type | 8 / 4 safe inputs cat. 4 · or · 8 standard inputs |
| Supply | 24 V UAUX |
| Current loading capacity | 10 m A per Sinyal çıkışı · 1.4 A OSSD supply output |
| Input current | Static Anahtarlama akımı 4 m A at 24 V, dynamic 30 m A at 24 V (T=100 μs) |
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005/AC:2005 · EN 61000-6-4:2007/A1:2011 |
| Directive 2006/42/EC | EN 13849-1:2008/AC:2009 EN 62061:2005 |
| Electromagnetic compatibility | EN 50295:1999 EN 61000-6-2:2005/AC:2005 · EN 61000-6-4:2007/A1:2011 |
| Koruma sınıfı | EN 60529:2000 |
| Electrical safety | IEC 61508:2010 and EN 62061:2005 (en fazla SIL3) EN 13849-1:2008/AC:2009 EN 61326-3-1:2008 |
| AS-Interface | EN 62026-2:2013 |
| Profile | S-0.B.E |
| IO code | 0 |
| ID code | B |
| ID1 code | F |
| Ortam sıcaklığı | 0 ... 55 °C (32 ... 131 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Bağlantı | removable terminals · rated Bağlantı capacity: · rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 · for multiple-wire Bağlantı with two wires of equal cross-section: · flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 |
| Gövde | PA 66-FR |
| Yükseklik | 99 mm |
| Genişlik | 22.5 mm |
| Uzunluk | 113 mm |
| Mounting | DIN mounting rail |
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
