Ultrasonik Sensörler

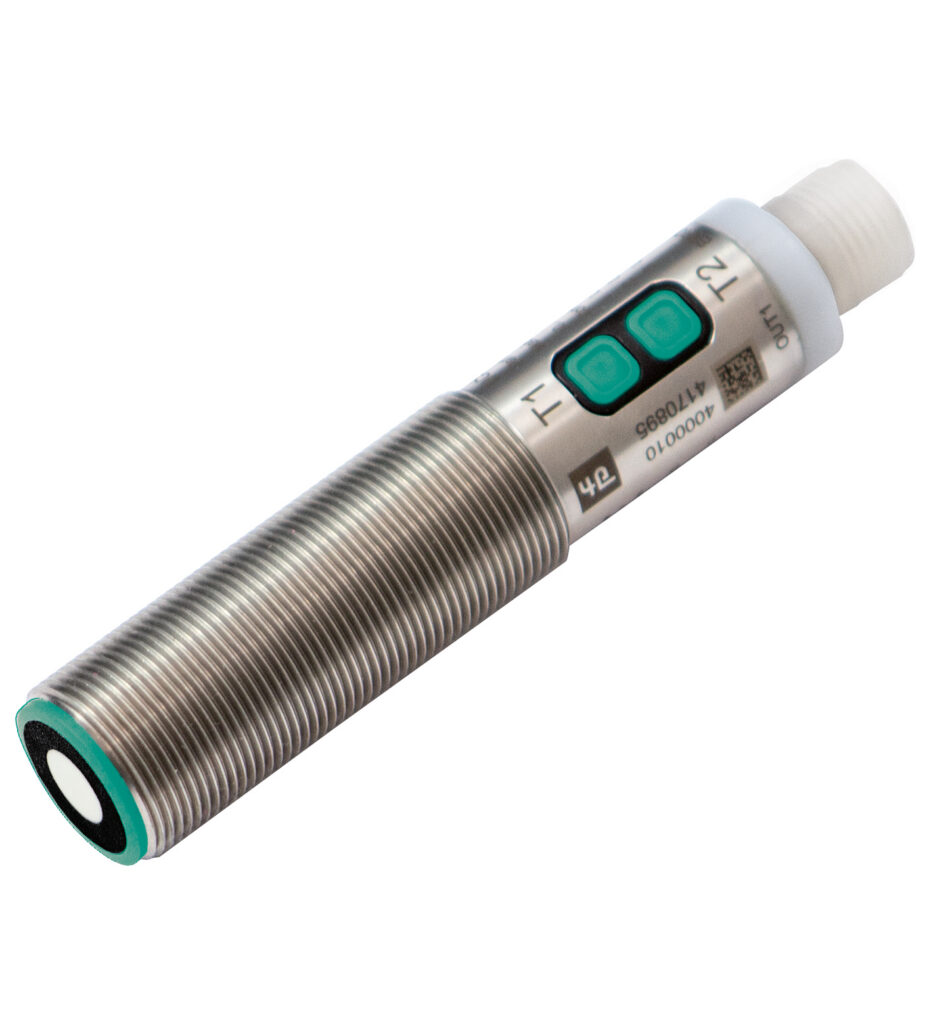

UC500-18GS-IUEP-IO-V15
| Sensing range | 30 ... 500 mm |
|---|---|
| Adjustment range | 50 ... 500 mm |
| Dead band | 0 ... 30 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 300 k Hz |
Ultrasonik sensör
- IO-Link Interface for process data, parameterization and diagnosis
- Programmable via DTM with PACTWARE
- Programmable via Ir DA (kızılötesi interface)
- Selectable sound lobe Genişlik
- Synchronization options
- Enhanced temperature compensation ayarlanabilir, stable measuring values already 2 min after switching on
- Push-pull output
- Analog output
Single head system, IO-Link Interface for process data, parameterization and diagnosis, Programmable via DTM with PACTWARE, Programmable via Ir DA (kızılötesi interface), Seri: UC-18GS, Çalışma gerilimi: 10 … 30 V DC , ripple 10 %SS, Interface type: IO-Link (via C/Q = Pin 4), Interface type: Ir DA (kızılötesi interface), Çıkış tipi: 1 push-pull output , kısa devre korumalı , ters polarite korumalı, Çıkış tipi: 1 analog output 0 (4) … 20 m A or , 1 analog output 0 … 10 V
UC500-18GS-IUEP-IO-V15
| Sensing range | 30 ... 500 mm |
|---|---|
| Adjustment range | 50 ... 500 mm |
| Dead band | 0 ... 30 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 300 k Hz |
| Response delay | minimum : 20 ms · factory setting: 40 ms |
| Sensor cycle time | ≥ 10 ms (factory setting) ; · programmable to 60 s |
| Temperature influence | with temperature compensation: ≤ ± 0.75% of the end value 10 min after switching on the sensor (factory setting) · with enhanced temperature compensation: ≤ ± 0.75% of the end value 2 min after switching on the sensor · without temperature compensation: 0.17 %/K |
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
| LED yeşil | solid: power on · flashing: standby mode or IO-Link communication |
| LED sarı | solid: object in evaluation range · flashing: switch point programming, object detected |
| LED kırmızı | solid: error · flashing: switch point programming, object not detected |
| Çalışma gerilimi | 10 ... 30 V DC , ripple 10 %SS |
| Boşta besleme akımı | ≤ 60 m A |
| Power consumption | ≤ 1000 m W |
| Time delay before availability | ≤ 300 ms |
| Interface type | IO-Link (via C/Q = Pin 4) |
| IO-Link revision | 1.1 |
| Device profile | Smart Sensor Profile 2 |
| Process data Genişlik | 32 bit |
| Device ID | 0x300602 (3147266) |
| Transfer rate | COM2 (38.4 k Bit/s) |
| Min. cycle time | 3 ms |
| SIO mode support | var |
| Compatible master port type | Class A · Class B (use 3-pole adapter or 3 telli Kablo) |
| Mode | point-to-point Bağlantı |
| Maximum communication distance | 5 cm |
| Input/Çıkış tipi | 1 synchronization Bağlantı, bidirectional |
| 0 Level | 0 ... 1 V |
| 1 Level | 2.5 V ... UB |
| Input impedance | > 22 kΩ |
| Output current | current source < 2.5 m A |
| Pulse Uzunluk | ≥ 1 ms with external control, low active |
| Common mode operation | ≤ 100 Hz |
| Multiplex operation | ≤ 71 Hz / n , n = number of sensors , n ≤ 10 |
| Çıkış tipi | 1 push-pull output , kısa devre korumalı , ters polarite korumalı |
| Rated Çalışma akımı | 100 m A , short-circuit/overload protected |
| Anahtarlama frekansı | factory setting: 14 Hz · programmable to 33 Hz |
| Gerilim düşümü | ≤ 2.5 V |
| Repeat accuracy | ≤ ± 0.1 % of full-scale value |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable , min. 1 mm |
| Resolution | current output: evaluation range [mm]/3200 but ≥ 0.35 mm · voltage output: evaluation range [mm]/4000 but ≥ 0.35 mm |
| Deviation of the characteristic curve | ≤ ± 1 % of full-scale value |
| Load resistor | current output: ≤ 500 Ω · voltage output: ≥ 1000 Ω |
| Standartlar | EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019 · EN 60947-5-7:2003 · IEC 60947-5-7:2003 · IEC 61131-9:2013 |
| UL onayı | c ULus Listed, Sınıf 2 güç kaynağı |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı tipi | Connector plug M12 x 1 , 5-pin |
| Koruma sınıfı | IP67 |
| Gövde | stainless steel (1.4305 / AISI 303)>BR>PA, PC, POM and PBT plastic parts |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Montaj position | any position |
| Ağırlık | 45 g |
| Sıkma torku, bağlama vidaları | max. 30 Nm |
| Uzunluk | 90 mm |
| çap | 18 mm |
| Output 1 | near switch point: 50 mm · far switch point: 500 mm · Output mode: Window mode · output behavior: NO contact |
| Output 2 | near limit: 50 mm · far limit: 500 mm · Output mode: rising ramp · output behavior: Current output 4 m A ... 20 m A |
| Beam Genişlik | wide |
