Pepperl+Fuchs
Ultrasonik Sensörler

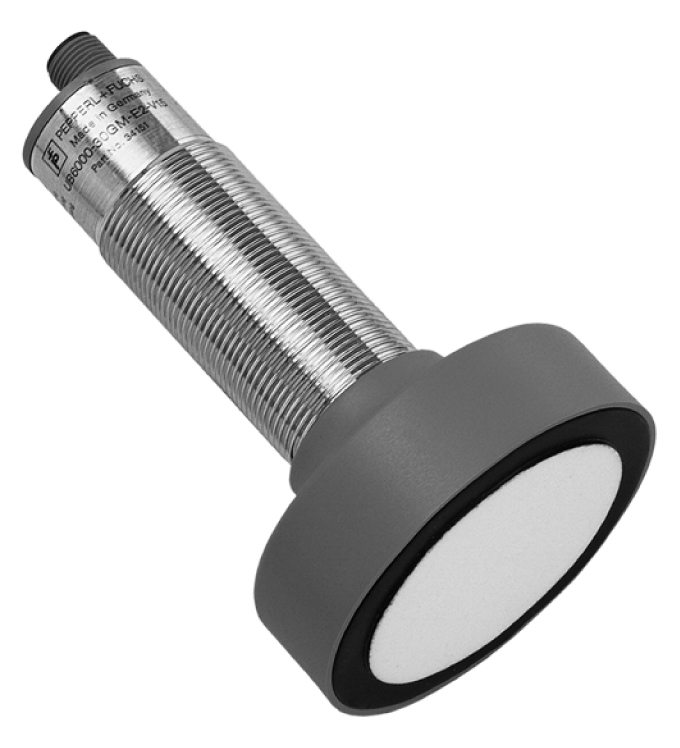

UB6000-30GM-E5-V15
| [{"label" | "Sensing range","value":"350 ... 6000 mm"},{"label":"Adjustment range","value":"400 ... 6000 mm"},{"label":"Dead band","value":"0 ... 350 mm"},{"label":"Standard target plate","value":"100 mm x 100 mm"},{"label":"Transducer frequency","value":"yak. 65 k Hz"},{"label":"Response delay","value":"yak. 650 ms"},{"label":"LED yeşil","value":"solid: Power-on · flashing: program function object detected"},{"label":"LED sarı","value":"solid: switching state switch output · flashing: program function"},{"label":"LED kırmızı","value":"normal operation: "fault" · program function: no object detected"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"≤ 50 m A"},{"label":"Synchronization","value":"bi-directional · 0 level -UB...+1 V · 1 level: +4 V...+UB · input impedance: > 12 KOhm · synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms"},{"label":"Common mode operation","value":"max. 7 Hz"},{"label":"Multiplex operation","value":"≤ 7 Hz / n , n = number of sensors , n ≤ 5"},{"label":"Input type","value":"1 program input, · operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB · input impedance: > 4.7 kΩ; program pulse: ≥ 1 s"},{"label":"Çıkış tipi","value":"1 switch output PNP , Normally open/closed , programmable"},{"label":"Rated Çalışma akımı","value":"200 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 2.5 V"},{"label":"Repeat accuracy","value":"≤ 0.5 % of switching point"},{"label":"Anahtarlama frekansı","value":"≤ 0.8 Hz"},{"label":"Range hysteresis","value":"1 % of the set operating distance"},{"label":"Temperature influence","value":"< 2 % of far switch point"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Connector plug M12 x 1 , 5-pin"},{"label":"Koruma sınıfı","value":"IP65"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"250 g"},{"label":"Uzunluk","value":"112 mm"},{"label":"çap","value":"73 mm"},{"label":"Output","value":"Switch point A1: 880 mm · Switch point A2: 6300 mm · output function: Window mode · output behavior: NO contact"}] |
|---|
Ultrasonik sensör
- Switching output
- 5 different output functions can be set
- Program input
- Synchronization options
- Deactivation option
- Temperature compensation
- Insensitive to compressed air
Single head system, Switching output, 5 different output functions can be set, Program input, Seri: UB-30GM, Çalışma gerilimi: 10 … 30 V DC , ripple 10 %SS, Çıkış tipi: 1 switch output PNP , Normally open/closed , programmable, UL onayı: c ULus Listed, General Purpose, CCC onayı: CCC onayı / marking not required for products rated ≤36 V, Bağlantı tipi: Connector plug M12 x 1 , 5-pin, Gövde: nickel plated brass; plastic components: PBT
UB6000-30GM-E5-V15
| [{"label" | "Sensing range","value":"350 ... 6000 mm"},{"label":"Adjustment range","value":"400 ... 6000 mm"},{"label":"Dead band","value":"0 ... 350 mm"},{"label":"Standard target plate","value":"100 mm x 100 mm"},{"label":"Transducer frequency","value":"yak. 65 k Hz"},{"label":"Response delay","value":"yak. 650 ms"},{"label":"LED yeşil","value":"solid: Power-on · flashing: program function object detected"},{"label":"LED sarı","value":"solid: switching state switch output · flashing: program function"},{"label":"LED kırmızı","value":"normal operation: "fault" · program function: no object detected"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"≤ 50 m A"},{"label":"Synchronization","value":"bi-directional · 0 level -UB...+1 V · 1 level: +4 V...+UB · input impedance: > 12 KOhm · synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms"},{"label":"Common mode operation","value":"max. 7 Hz"},{"label":"Multiplex operation","value":"≤ 7 Hz / n , n = number of sensors , n ≤ 5"},{"label":"Input type","value":"1 program input, · operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB · input impedance: > 4.7 kΩ; program pulse: ≥ 1 s"},{"label":"Çıkış tipi","value":"1 switch output PNP , Normally open/closed , programmable"},{"label":"Rated Çalışma akımı","value":"200 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 2.5 V"},{"label":"Repeat accuracy","value":"≤ 0.5 % of switching point"},{"label":"Anahtarlama frekansı","value":"≤ 0.8 Hz"},{"label":"Range hysteresis","value":"1 % of the set operating distance"},{"label":"Temperature influence","value":"< 2 % of far switch point"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Connector plug M12 x 1 , 5-pin"},{"label":"Koruma sınıfı","value":"IP65"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"250 g"},{"label":"Uzunluk","value":"112 mm"},{"label":"çap","value":"73 mm"},{"label":"Output","value":"Switch point A1: 880 mm · Switch point A2: 6300 mm · output function: Window mode · output behavior: NO contact"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
