Ultrasonik Sensörler

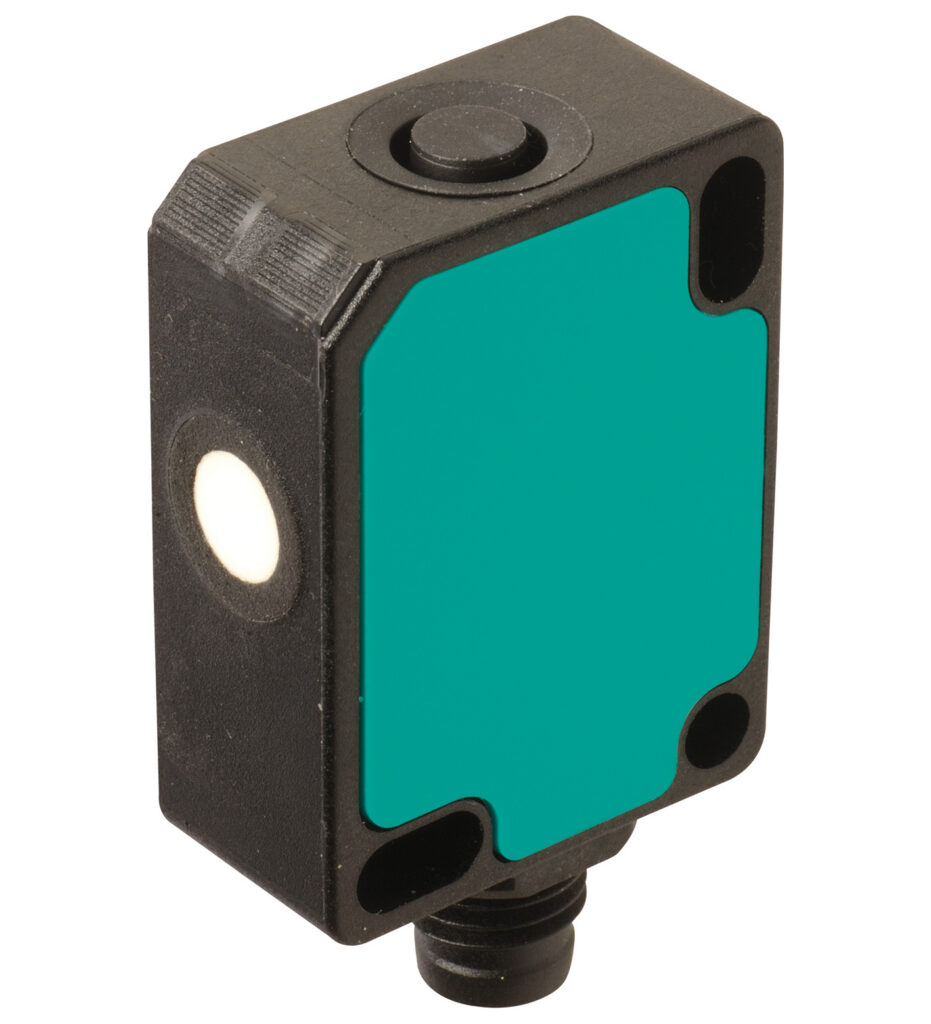

UC250-F77-EP-IO-V31
| Sensing range | 20 ... 250 mm |
|---|---|
| Adjustment range | 25 ... 250 mm |
| Dead band | 0 ... 20 mm |
| Standard target plate | 10 mm x 10 mm |
| Transducer frequency | yak. 400 k Hz |
Ultrasonik sensör
- IO-Link interface for service and process data
- Programmable via DTM with PACTWARE
- Continuous distance value via IO-Link process data
- Selectable sound lobe Genişlik
- Synchronization options
- Temperature compensation
- Push-pull output
Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, Continuous distance value via IO-Link process data, Seri: UC-F77, Çalışma gerilimi: 10 … 30 V DC , ripple 10 %SS, Interface type: IO-Link (via C/Q = Pin 4), Çıkış tipi: 1 push-pull (4 in 1) output, kısa devre korumalı, ters polarite korumalı, UL onayı: c ULus Listed, Sınıf 2 güç kaynağı, CCC onayı: CCC onayı / marking not required for products rated ≤36 V
UC250-F77-EP-IO-V31
| Sensing range | 20 ... 250 mm |
|---|---|
| Adjustment range | 25 ... 250 mm |
| Dead band | 0 ... 20 mm |
| Standard target plate | 10 mm x 10 mm |
| Transducer frequency | yak. 400 k Hz |
| Response delay | minimum : 8 ms · factory setting: 29 ms |
| Sensor cycle time | ≥ 8 ms (factory setting) ; · programmable to 60 s |
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
| LED yeşil | solid: power on · flashing: standby mode or IO-Link communication |
| LED sarı | solid: object in evaluation range · flashing: switch point programming, object detected |
| LED kırmızı | solid: error · flashing: switch point programming, object not detected |
| Çalışma gerilimi | 10 ... 30 V DC , ripple 10 %SS |
| Boşta besleme akımı | ≤ 40 m A |
| Power consumption | ≤ 400 m W |
| Time delay before availability | ≤ 300 ms |
| Interface type | IO-Link (via C/Q = Pin 4) |
| IO-Link revision | 1.1 |
| Device profile | Smart Sensor |
| Device ID | 0x300300 (3146496) |
| Transfer rate | COM2 (38.4 k Bit/s) |
| Min. cycle time | 2.3 ms |
| Process data Genişlik | 16 bit |
| SIO mode support | var |
| Compatible master port type | A |
| Input/Çıkış tipi | 1 synchronization Bağlantı, bidirectional |
| 0 Level | 0 ... 1 V |
| 1 Level | 2.5 V ... UB |
| Input impedance | > 22 kΩ |
| Output current | current source < 2.5 m A |
| Pulse Uzunluk | ≥ 1 ms with external control, low active |
| Common mode operation | ≤ 141 Hz |
| Multiplex operation | ≤ 141 Hz / n , n = number of sensors , n ≤ 10 |
| Çıkış tipi | 1 push-pull (4 in 1) output, kısa devre korumalı, ters polarite korumalı |
| Rated Çalışma akımı | 100 m A , short-circuit/overload protected |
| Gerilim düşümü | ≤ 2.5 V |
| Repeat accuracy | ≤ ± 0.1 % of full-scale value |
| Anahtarlama frekansı | factory setting: 20 Hz programmable max. 45 Hz |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable , min. 1 mm |
| Temperature influence | ≤ ± 0.75 % of the end value (with temperature compensation) · from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation) |
| Standartlar | EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019 · IEC 61131-9:2013 |
| UL onayı | c ULus Listed, Sınıf 2 güç kaynağı |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı tipi | Connector plug M8 x 1 , 4-pin |
| Koruma sınıfı | IP67 |
| Gövde | Polycarbonate |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Montaj position | any position |
| Ağırlık | 9 g |
| Sıkma torku, bağlama vidaları | max. 0.2 Nm |
| Yükseklik | 31 mm |
| Genişlik | 12 mm |
| Uzunluk | 23 mm |
| Output | near switch point: 25 mm · far switch point: 250 mm · Output mode: Window mode · Output logic: normally open |
| Beam Genişlik | wide |
