Ultrasonik Sensörler

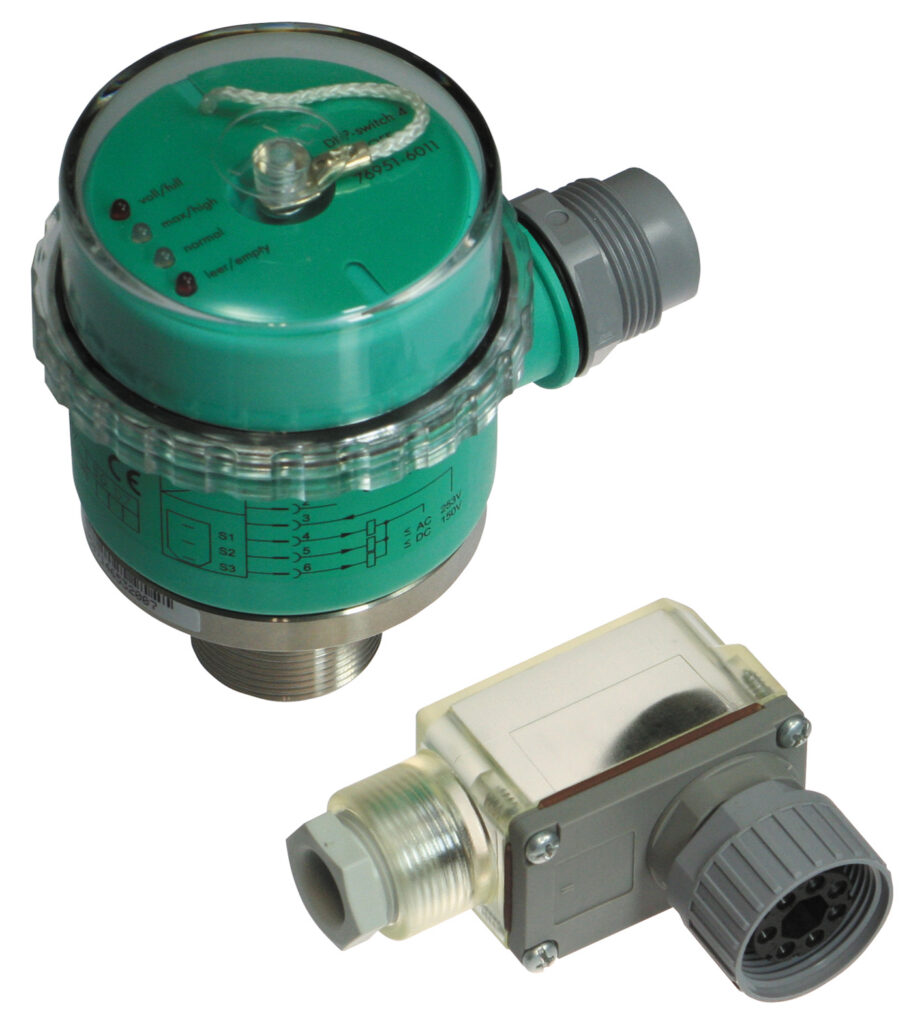

UC500-D1-3K-V7
| Sensing range | 60 ... 550 mm |
|---|---|
| Dead band | 0 ... 60 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 380 k Hz |
| Response delay | > 10 s, relay · < 1 s, LEDs |
Ultrasonik sensör
- Specially for level monitoring in vessels
- Large Çalışma gerilimi range10 V DC … 250 V DC20 V AC … 250 V AC
- 3 relay outputs
- Parameter assignment via DIP-switches
- Temperature compensation
- Kablo socket included with delivery
Single head system, Specially for level monitoring in vessels, Large Çalışma gerilimi range, 10 V DC … 250 V DC, 20 V AC … 250 V AC, 3 relay outputs, Seri: UC-D1, Çalışma gerilimi: 10 … 250 V DC , 20 … 250 V AC , 47 … 63 Hz, Çıkış tipi: 3 relay outputs, normally open/closed, selectable, CCC onayı: self-declaration, Bağlantı: Female connector, V7 (7-pin), 90° , Wire cross section: ≤1.5 mm2 , Kablo çapı ∅7 … 9 mm
UC500-D1-3K-V7
| Sensing range | 60 ... 550 mm |
|---|---|
| Dead band | 0 ... 60 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 380 k Hz |
| Response delay | > 10 s, relay · < 1 s, LEDs |
| LED kırmızı | LED 1: overfill indication · LED 4: underfill indication |
| LED yeşil/sarı | LED 2: overfill warning and normal operation · LED 3: normal operation and underfill warning |
| DIP switch | setting of the switch points/operating modes |
| Çalışma gerilimi | 10 ... 250 V DC · 20 ... 250 V AC , 47 ... 63 Hz |
| Boşta besleme akımı | < 30 m A with UB = 30 V DC · < 110 m A at UB = 10 V DC · < 25 m A at UB = 220 V AC |
| Çıkış tipi | 3 relay outputs, normally open/closed, selectable |
| Range hysteresis | 20 mm |
| Contact loading | max. switchable power: 250 V AC/30V DC, 3 A (ohmik yük) · max. switchable voltage: 250 V AC/125 V DC |
| Life span | Electrical: 105 switching cycles at ohmik yük · (3 A/250 V AC or 3 A/ 30 V DC) · min. contact load: 10 m A / 5 V DC · mechanical: 20 x 106 switching cycles |
| Temperature influence | < 4 % |
| Fusing | ≤ 3 A Slow-blow fuse per output in accordance with IEC 60127-2 Sheet 5 required. Recommendation: after a short circuit, check that the device is functioning correctly. |
| Standartlar | EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019 |
| CCC onayı | self-declaration |
| Ortam sıcaklığı | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Koruma sınıfı | IP65 |
| Bağlantı | Female connector, V7 (7-pin), 90° · Wire cross section: ≤1.5 mm2 · Kablo çapı ∅7 ... 9 mm |
| Gövde | cover: PC · Gövde: PBT · threaded flange: stainless steel · Montaj connector/Kablo socket: PETP |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Ağırlık | 700 g |
| Uzunluk | 107 mm |
| çap | 75 mm |
| Note | In case of loss or damage, the Kablo socket must be replaced by an identical Kablo socket (type V7-W) from Pepperl+Fuchs! |
