Pepperl+Fuchs
Ultrasonik Sensörler

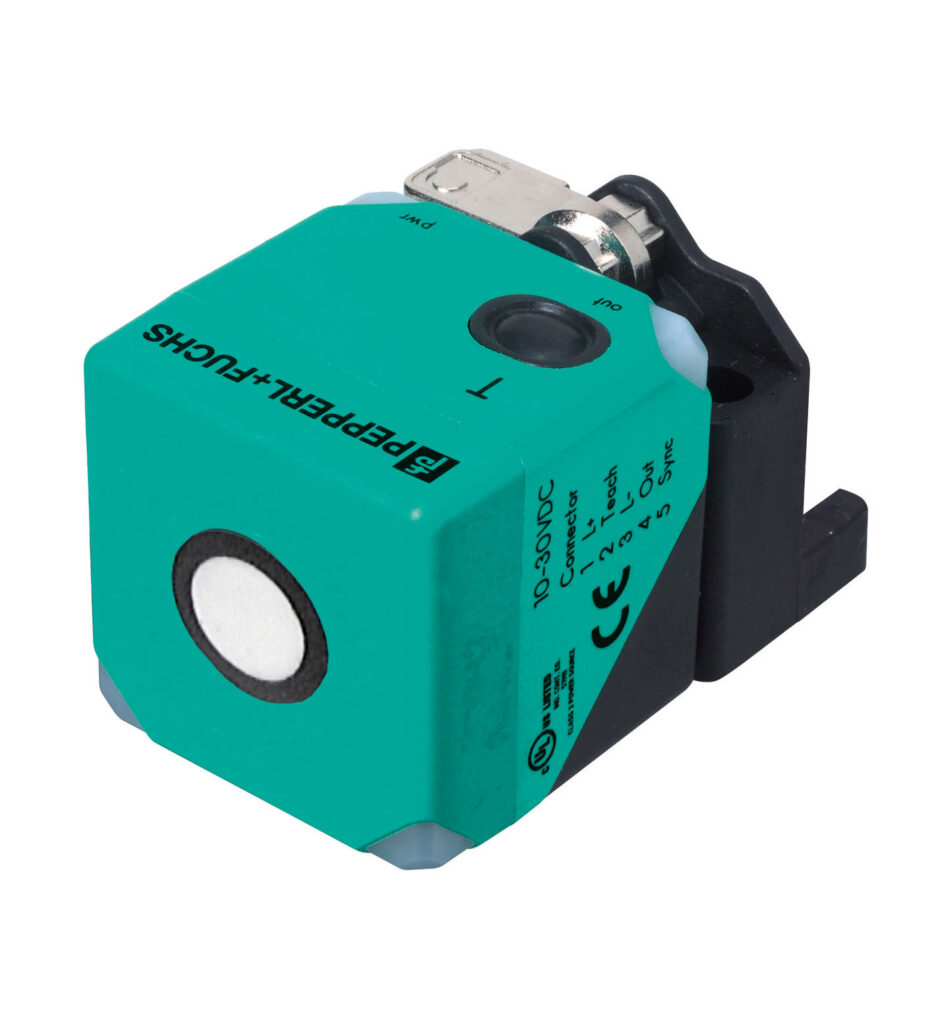

UC500-L2-E5-V15
| [{"label":"Sensing range","value":"35 ... 500 mm"},{"label":"Adjustment range","value":"50 ... 500 mm"},{"label":"Dead band","value":"0 ... 35 mm"},{"label":"Standard target plate","value":"100 mm x 100 mm"},{"label":"Transducer frequency","value":"yak. 380 k Hz"},{"label":"Response delay","value":"minimum: 20 ms · factory setting: 55 ms"},{"label":"Time delay before availability","value":"≤ 1600 ms"},{"label":"LED yeşil","value":"Operating display"},{"label":"LED sarı","value":"switching state"},{"label":"LED kırmızı","value":"error"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"≤ 50 m A"},{"label":"Interface type","value":"Serial interface (programming adapter required) · 9600 BPS, no parity, 8 data bits, 1 stop bit"},{"label":"Input/Çıkış tipi","value":"1 synchronization Bağlantı, bidirectional"},{"label":"0 Level","value":"0 ... 1 V"},{"label":"1 Level","value":"4 V ... UB"},{"label":"Input impedance","value":"> 12 kΩ"},{"label":"Output current","value":"< 12 m A"},{"label":"Pulse Uzunluk","value":"0.5 ... 300 ms (level 1)"},{"label":"Pulse interval","value":"≥ 14 ms (level 0)"},{"label":"Common mode operation","value":"≤ 70 Hz"},{"label":"Multiplex operation","value":"≤ 90 Hz / n , n = number of sensors , n ≤ 10 · (factory setting: n = 5 )"},{"label":"Input type","value":"1 program input"},{"label":"Level (switch point 1)","value":"0 ... 1 V"},{"label":"Level (switch point 2)","value":"4 V ... UB"},{"label":"Çıkış tipi","value":"1 switching output E5, PNP NO/NC, programmable"},{"label":"Rated Çalışma akımı","value":"200 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 2 V"},{"label":"Repeat accuracy","value":"≤ 0.1 % of full-scale value"},{"label":"Anahtarlama frekansı","value":"≤ 14 Hz"},{"label":"Range hysteresis","value":"programmable , preset to 1 mm"},{"label":"Temperature influence","value":"< 1.5 % of full-scale value"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Connector plug M12 x 1 , 5-pin"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"PA-GF35"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture | polyurethane foam"},{"label":"Ağırlık","value":"115 g"},{"label":"Yükseklik","value":"40 mm"},{"label":"Genişlik","value":"40 mm"},{"label":"Uzunluk","value":"40 mm"},{"label":"Output","value":"near switch point: 50 mm · far switch point: 500 mm · output function: Window mode · output behavior: NO contact"},{"label":"Beam Genişlik","value":"wide"},{"label":"Evaluation procedure","value":"averaging (Mx N) · M = 5 · N = 2"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Ultrasonik sensör
- Sensor head bidirectional and rotatable
- Fonksiyon göstergesis visible from all directions
- Quick mounting bracket
- Selectable sound lobe Genişlik
- Programmable
Single head system, Sensor head bidirectional and rotatable, Fonksiyon göstergesis visible from all directions, Quick mounting bracket, Seri: UC-L2, Çalışma gerilimi: 10 … 30 V DC , ripple 10 %SS, Interface type: Serial interface (programming adapter required) , 9600 BPS, no parity, 8 data bits, 1 stop bit, Çıkış tipi: 1 switching output E5, PNP NO/NC, programmable, UL onayı: c ULus Listed, Sınıf 2 güç kaynağı
UC500-L2-E5-V15
| [{"label":"Sensing range","value":"35 ... 500 mm"},{"label":"Adjustment range","value":"50 ... 500 mm"},{"label":"Dead band","value":"0 ... 35 mm"},{"label":"Standard target plate","value":"100 mm x 100 mm"},{"label":"Transducer frequency","value":"yak. 380 k Hz"},{"label":"Response delay","value":"minimum: 20 ms · factory setting: 55 ms"},{"label":"Time delay before availability","value":"≤ 1600 ms"},{"label":"LED yeşil","value":"Operating display"},{"label":"LED sarı","value":"switching state"},{"label":"LED kırmızı","value":"error"},{"label":"Çalışma gerilimi","value":"10 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"≤ 50 m A"},{"label":"Interface type","value":"Serial interface (programming adapter required) · 9600 BPS, no parity, 8 data bits, 1 stop bit"},{"label":"Input/Çıkış tipi","value":"1 synchronization Bağlantı, bidirectional"},{"label":"0 Level","value":"0 ... 1 V"},{"label":"1 Level","value":"4 V ... UB"},{"label":"Input impedance","value":"> 12 kΩ"},{"label":"Output current","value":"< 12 m A"},{"label":"Pulse Uzunluk","value":"0.5 ... 300 ms (level 1)"},{"label":"Pulse interval","value":"≥ 14 ms (level 0)"},{"label":"Common mode operation","value":"≤ 70 Hz"},{"label":"Multiplex operation","value":"≤ 90 Hz / n , n = number of sensors , n ≤ 10 · (factory setting: n = 5 )"},{"label":"Input type","value":"1 program input"},{"label":"Level (switch point 1)","value":"0 ... 1 V"},{"label":"Level (switch point 2)","value":"4 V ... UB"},{"label":"Çıkış tipi","value":"1 switching output E5, PNP NO/NC, programmable"},{"label":"Rated Çalışma akımı","value":"200 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 2 V"},{"label":"Repeat accuracy","value":"≤ 0.1 % of full-scale value"},{"label":"Anahtarlama frekansı","value":"≤ 14 Hz"},{"label":"Range hysteresis","value":"programmable , preset to 1 mm"},{"label":"Temperature influence","value":"< 1.5 % of full-scale value"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"-25 ... 70 °C (-13 ... 158 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Connector plug M12 x 1 , 5-pin"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"PA-GF35"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture | polyurethane foam"},{"label":"Ağırlık","value":"115 g"},{"label":"Yükseklik","value":"40 mm"},{"label":"Genişlik","value":"40 mm"},{"label":"Uzunluk","value":"40 mm"},{"label":"Output","value":"near switch point: 50 mm · far switch point: 500 mm · output function: Window mode · output behavior: NO contact"},{"label":"Beam Genişlik","value":"wide"},{"label":"Evaluation procedure","value":"averaging (Mx N) · M = 5 · N = 2"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
