Pepperl+Fuchs
Ultrasonik Sensörler

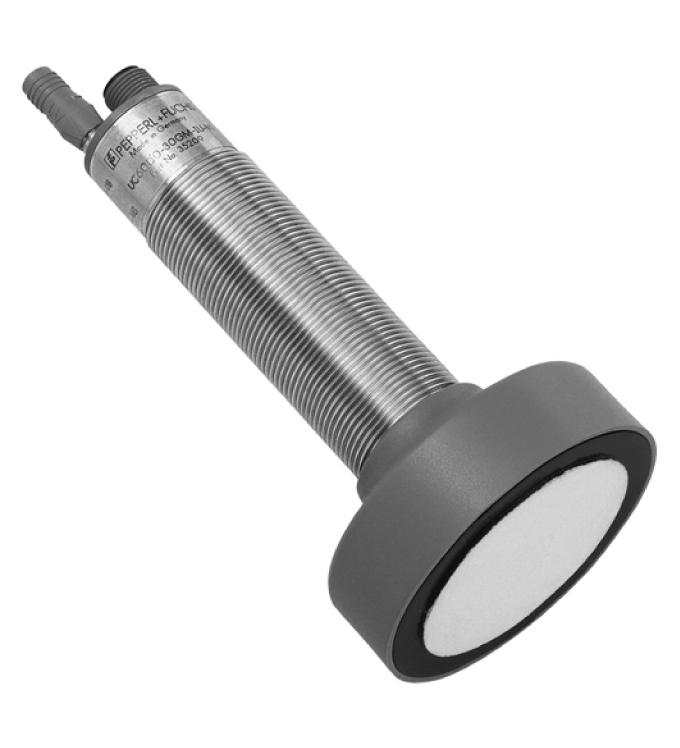

UC6000-30GM-IUR2-V15
| Sensing range | 350 ... 6000 mm |
|---|---|
| Adjustment range | 400 ... 6000 mm |
| Dead band | 0 ... 350 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 65 k Hz |
Ultrasonik sensör
- Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000
- Analog current and voltage output
- Synchronization options
- ayarlanabilir acoustic power and sensitivity
- Temperature compensation
Single head system, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, Synchronization options, Seri: UC-30GM, Çalışma gerilimi: 10 … 30 V DC , ripple 10 %SS, Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit, Çıkış tipi: 1 current output 4 … 20 m A, 1 voltage output 0 … 10 V, UL onayı: c ULus Listed, General Purpose
UC6000-30GM-IUR2-V15
| Sensing range | 350 ... 6000 mm |
|---|---|
| Adjustment range | 400 ... 6000 mm |
| Dead band | 0 ... 350 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 65 k Hz |
| Response delay | 285 ms minimum · 850 ms factory setting |
| LED yeşil | solid: Power-on · flashing: Standby mode or program function object detected |
| LED sarı 1 | solid: object in evaluation range · flashing: program function |
| LED sarı 2 | solid: object in Algılama menzili · flashing: program function |
| LED kırmızı | solid: temperature/program plug not connected · flashing: fault or program function object not detected |
| Temperature/teach-in connector | Temperature compensation , Evaluation range programming , output function setting |
| Çalışma gerilimi | 10 ... 30 V DC , ripple 10 %SS |
| Power consumption | ≤ 900 m W |
| Time delay before availability | ≤ 500 ms |
| Interface type | RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit |
| Synchronization | bi-directional · 0 level -UB...+1 V · 1 level: +4 V...+UB · input impedance: > 12 KOhm · synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms |
| Common mode operation | max. 7 Hz |
| Multiplex operation | ≤ 7 Hz / n , n = number of sensors , n ≤ 5 |
| Çıkış tipi | 1 current output 4 ... 20 m A · 1 voltage output 0 ... 10 V |
| Resolution | evaluation range [mm]/4000, but ≥ 0.35 mm |
| Deviation of the characteristic curve | ≤ 0.2 % of full-scale value |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Load impedance | current output: ≤ 500 Ohm · voltage output: ≥ 1000 Ohm |
| Temperature influence | ≤ 2 % from full-scale value (with temperature compensation) · ≤ 0.2 %/K (without temperature compensation) |
| Standartlar | EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019 · EN 60947-5-7:2003 · IEC 60947-5-7:2003 |
| UL onayı | c ULus Listed, General Purpose |
| CCC onayı | CCC onayı / marking not required for products rated ≤36 V |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı tipi | Connector plug M12 x 1 , 5-pin |
| Koruma sınıfı | IP65 |
| Gövde | stainless steel (1.4305 / AISI 303) · PBT plastic parts |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Ağırlık | 280 g |
| Uzunluk | 132 mm |
| çap | 73 mm |
| Output | evaluation limit A1: 800 mm · evaluation limit A2: 6000 mm · rising ramp |
