Ultrasonik Sensörler

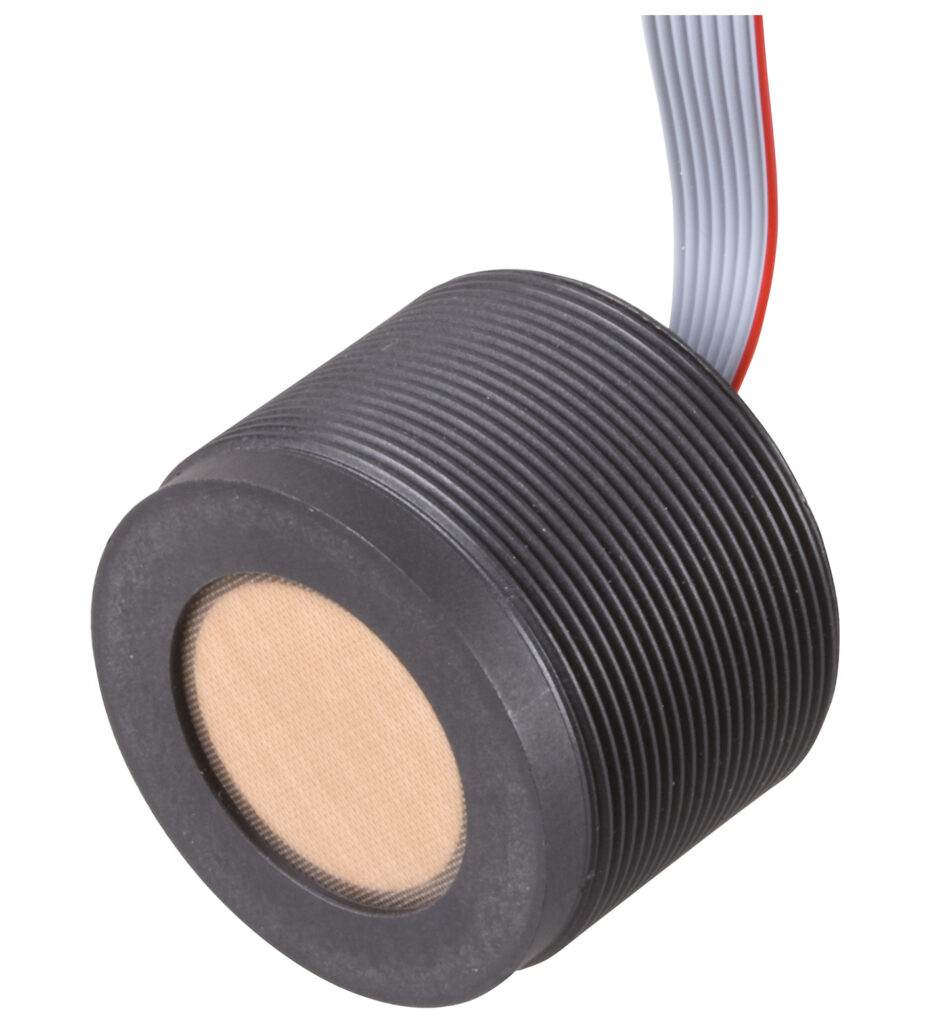

UCC4000-50GK-B26-8MOL
| Sensing range | 250 ... 4000 mm |
|---|---|
| Dead band | 0 ... 250 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 75 k Hz |
| Çalışma gerilimi | for UART and PWM operation: · UUART/PWM = 2.5 ... 5 V DC, typical 3.3 V · for LIN operation: · ULIN = 8 ... 18 V DC, typical 12 V |
Ultrasonik sensör
- Thread M50
- PTFE coated transducer
- Power save mode
- PWM output
- Physical LIN interface
- Serial Interfaces
- Temperature compensation
Single head system, Thread M50, PTFE coated transducer, Power save mode, Seri: -50GK, Çalışma gerilimi: for UART and PWM operation: , UUART/PWM = 2.5 … 5 V DC, typical 3.3 V , for LIN operation: , ULIN = 8 … 18 V DC, typical 12 V, Interface type: Physical LIN interface, Interface type: UART 3.3V, Çıkış tipi: PWM output (PNP) , not kısa devre korumalı, Bağlantı tipi: sabit Kablo with plug, Gövde: PBT, Connector: Molex connector 70107-0007
UCC4000-50GK-B26-8MOL
| Sensing range | 250 ... 4000 mm |
|---|---|
| Dead band | 0 ... 250 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | yak. 75 k Hz |
| Çalışma gerilimi | for UART and PWM operation: · UUART/PWM = 2.5 ... 5 V DC, typical 3.3 V · for LIN operation: · ULIN = 8 ... 18 V DC, typical 12 V |
| Boşta besleme akımı | ≤ 60 m A at 3.3 V DC · ≤ 20 m A at 12 V DC |
| Quiescent current indication | < 3 µA during standby mode at UART- and PWM operation |
| Power consumption | ≤ 250 m W in the measurement operating mode |
| Time delay before availability | ≤ 95 ms |
| Interface type | Physical LIN interface |
| Transfer rate | 19.2 k Bit/s (8N1) |
| Cycle time | 80 ms |
| Resolution | 16 mm (corresponding to 1 LSB) |
| Input type | Standby active |
| Signal level | low: 0 ... 0.8 V |
| Çıkış tipi | PWM output (PNP) , not kısa devre korumalı |
| Output current | max. 10 m A |
| Temperature influence | 3 % of full-scale value over the entire temperature range |
| Directive 2014/30/EU | EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 · The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection. |
| Ortam sıcaklığı | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Bağlantı tipi | sabit Kablo with plug |
| Koruma sınıfı | IP66 / IP67 ( connector excluded ) |
| Gövde | PBT |
| Transducer | epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated |
| Connector | Molex connector 70107-0007 |
| Pin sayısı | 8 |
| Uzunluk | 276 mm ± 20 mm |
| Ağırlık | 100 g |
| Yükseklik | 37 mm |
| Genişlik | 50 mm |
| Output | PWM output (PNP) · Temperature compensation · Address setting 7 |
| Beam Genişlik | wide |
| Scope of delivery | 2 nuts plastic |
