Pepperl+Fuchs
Ultrasonik Sensörler

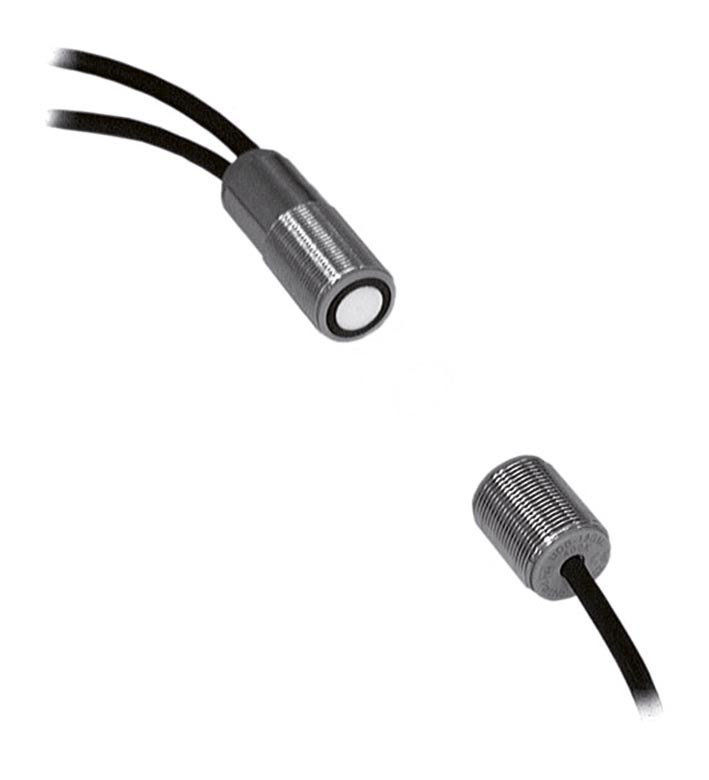

UDC-18GM50-400-3E2
| [{"label" | "Sensing range","value":"20 ... 60 mm , optimal distance: 45 mm"},{"label":"Transducer frequency","value":"395 k Hz"},{"label":"LED yeşil","value":"indication: single sheet detected"},{"label":"LED sarı","value":"indication: no sheet detected (Air)"},{"label":"LED kırmızı","value":"indication: double sheet detected"},{"label":"Çalışma gerilimi","value":"18 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"< 50 m A"},{"label":"Time delay before availability","value":"< 500 ms"},{"label":"Input type","value":"Function input · 0-level: -UB ... -UB + 1V · 1-level: +UB - 1 V ... +UB"},{"label":"Pulse Uzunluk","value":"≥ 100 ms"},{"label":"Impedance","value":"≥ 4 kΩ"},{"label":"Çıkış tipi","value":"3 switch outputs PNP, NO"},{"label":"Rated Çalışma akımı","value":"3 x 100 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 3 V"},{"label":"Switch-on delay","value":"yak. 15 ms (shorter Tepki süresi on request)"},{"label":"Switch-off delay","value":"yak. 15 ms (shorter Tepki süresi on request)"},{"label":"Pulse extension","value":"min. 120 ms programmable"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"0 ... 60 °C (32 ... 140 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Kablo PVC , 2 m"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"135 g"},{"label":"Uzunluk","value":"50 mm"},{"label":"çap","value":"18 mm"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Double sheet sensor
- Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers
- Short version
- No teach-in required
- Fonksiyon göstergesis visible from all directions
- Insensitive to printing, colors, and shining surfaces
- Malzeme weight from 10 g/m2 en fazla over 2000 g/m2
- Very wide Malzeme spectrum, finest papers en fazla thin sheet metals as well as plastic- and metal foils
- Perpendicular or inclined sensor mounting relative to the sheet plane possible
- Programmable
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, Short version, No teach-in required, Sensing range: 20 … 60 mm , optimal distance: 45 mm, Thread mold: M18, Yapı tipi: Cylindrical, thread, Seri: UDC-18GM, Çalışma gerilimi: 18 … 30 V DC , ripple 10 %SS, Çıkış tipi: 3 switch outputs PNP, NO, UL onayı: c ULus Listed, General Purpose, Sınıf 2 güç kaynağı
UDC-18GM50-400-3E2
| [{"label" | "Sensing range","value":"20 ... 60 mm , optimal distance: 45 mm"},{"label":"Transducer frequency","value":"395 k Hz"},{"label":"LED yeşil","value":"indication: single sheet detected"},{"label":"LED sarı","value":"indication: no sheet detected (Air)"},{"label":"LED kırmızı","value":"indication: double sheet detected"},{"label":"Çalışma gerilimi","value":"18 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"< 50 m A"},{"label":"Time delay before availability","value":"< 500 ms"},{"label":"Input type","value":"Function input · 0-level: -UB ... -UB + 1V · 1-level: +UB - 1 V ... +UB"},{"label":"Pulse Uzunluk","value":"≥ 100 ms"},{"label":"Impedance","value":"≥ 4 kΩ"},{"label":"Çıkış tipi","value":"3 switch outputs PNP, NO"},{"label":"Rated Çalışma akımı","value":"3 x 100 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 3 V"},{"label":"Switch-on delay","value":"yak. 15 ms (shorter Tepki süresi on request)"},{"label":"Switch-off delay","value":"yak. 15 ms (shorter Tepki süresi on request)"},{"label":"Pulse extension","value":"min. 120 ms programmable"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"0 ... 60 °C (32 ... 140 °F)"},{"label":"Storage temperature","value":"-40 ... 85 °C (-40 ... 185 °F)"},{"label":"Bağlantı tipi","value":"Kablo PVC , 2 m"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"135 g"},{"label":"Uzunluk","value":"50 mm"},{"label":"çap","value":"18 mm"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
