Pepperl+Fuchs
Ultrasonik Sensörler

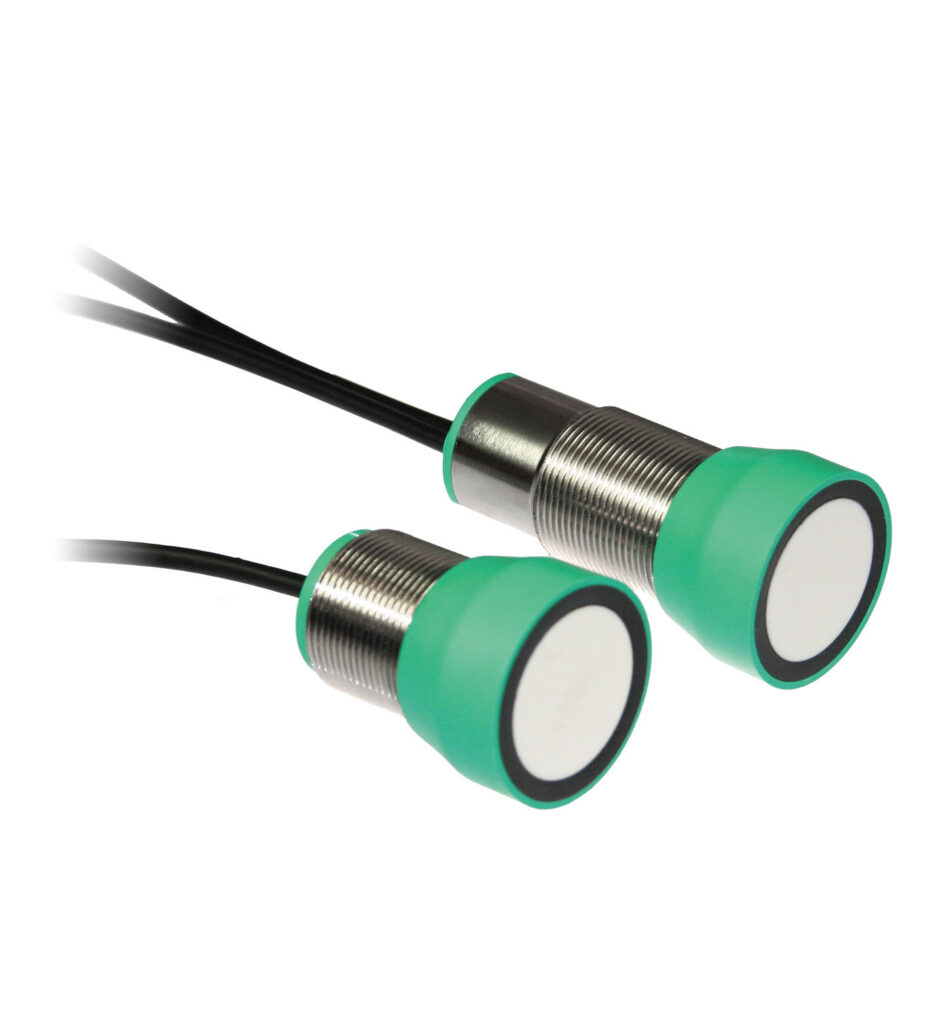

UDCM-30GM-085-3E3
| [{"label" | "Sensing range","value":"50 ... 150 mm , optimal distance: 80 mm"},{"label":"Transducer frequency","value":"85 k Hz"},{"label":"LED yeşil","value":"indication: single sheet metal detected"},{"label":"LED sarı","value":"Indication: No sheet metal detected (Air)"},{"label":"LED kırmızı","value":"indication: double sheet metal detected"},{"label":"Çalışma gerilimi","value":"18 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"< 200 m A"},{"label":"Time delay before availability","value":"< 500 ms"},{"label":"Input type","value":"Function input · 0-level: -UB ... -UB + 1V · 1-level: +UB - 1 V ... +UB"},{"label":"Pulse Uzunluk","value":"≥ 100 ms"},{"label":"Function","value":"in normal operation mode, the function input has to be connected with UB+ or UB-"},{"label":"Impedance","value":"≥ 4 kΩ"},{"label":"Çıkış tipi","value":"3 switch outputs PNP, NC"},{"label":"Rated Çalışma akımı","value":"3 x 100 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 3 V"},{"label":"Switch-on delay","value":"yak. 30 ms"},{"label":"Switch-off delay","value":"yak. 30 ms"},{"label":"Pulse extension","value":"min. 120 ms programmable"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"0 ... 50 °C (32 ... 122 °F)"},{"label":"Storage temperature","value":"-40 ... 70 °C (-40 ... 158 °F)"},{"label":"Bağlantı tipi","value":"Kablo PVC , 2 m"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Koruma sınıfı","value":"IP65"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"300 g"},{"label":"Uzunluk","value":"90 mm"},{"label":"çap","value":"40 mm"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Double plate sensor
- Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably sheet metal
- No teach-in required
- Insensitive to printing, colors, and shining surfaces
- Programmable
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably sheet metal, No teach-in required, Insensitive to printing, colors, and shining surfaces, Sensing range: 50 … 150 mm , optimal distance: 80 mm, Thread mold: M30, Yapı tipi: Cylindrical, thread, Seri: UDCM-30GM, Çalışma gerilimi: 18 … 30 V DC , ripple 10 %SS, Çıkış tipi: 3 switch outputs PNP, NC, UL onayı: c ULus Listed, General Purpose, Sınıf 2 güç kaynağı
UDCM-30GM-085-3E3
| [{"label" | "Sensing range","value":"50 ... 150 mm , optimal distance: 80 mm"},{"label":"Transducer frequency","value":"85 k Hz"},{"label":"LED yeşil","value":"indication: single sheet metal detected"},{"label":"LED sarı","value":"Indication: No sheet metal detected (Air)"},{"label":"LED kırmızı","value":"indication: double sheet metal detected"},{"label":"Çalışma gerilimi","value":"18 ... 30 V DC , ripple 10 %SS"},{"label":"Boşta besleme akımı","value":"< 200 m A"},{"label":"Time delay before availability","value":"< 500 ms"},{"label":"Input type","value":"Function input · 0-level: -UB ... -UB + 1V · 1-level: +UB - 1 V ... +UB"},{"label":"Pulse Uzunluk","value":"≥ 100 ms"},{"label":"Function","value":"in normal operation mode, the function input has to be connected with UB+ or UB-"},{"label":"Impedance","value":"≥ 4 kΩ"},{"label":"Çıkış tipi","value":"3 switch outputs PNP, NC"},{"label":"Rated Çalışma akımı","value":"3 x 100 m A , short-circuit/overload protected"},{"label":"Gerilim düşümü","value":"≤ 3 V"},{"label":"Switch-on delay","value":"yak. 30 ms"},{"label":"Switch-off delay","value":"yak. 30 ms"},{"label":"Pulse extension","value":"min. 120 ms programmable"},{"label":"Standartlar","value":"EN IEC 60947-5-2:2020 · IEC 60947-5-2:2019"},{"label":"UL onayı","value":"c ULus Listed, General Purpose, Sınıf 2 güç kaynağı"},{"label":"CCC onayı","value":"CCC onayı / marking not required for products rated ≤36 V"},{"label":"Ortam sıcaklığı","value":"0 ... 50 °C (32 ... 122 °F)"},{"label":"Storage temperature","value":"-40 ... 70 °C (-40 ... 158 °F)"},{"label":"Bağlantı tipi","value":"Kablo PVC , 2 m"},{"label":"İletken kesiti","value":"0.14 mm2"},{"label":"Koruma sınıfı","value":"IP65"},{"label":"Gövde","value":"nickel plated brass; plastic components: PBT"},{"label":"Transducer","value":"epoxy resin/hollow glass sphere mixture; polyurethane foam"},{"label":"Ağırlık","value":"300 g"},{"label":"Uzunluk","value":"90 mm"},{"label":"çap","value":"40 mm"},{"label":"Supplementary information","value":"Switch settings of the external programming adapter: · "output load": pull-down · "output logic": inv"}] |
|---|
Doküman henüz eklenmedi.
Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
