70111630

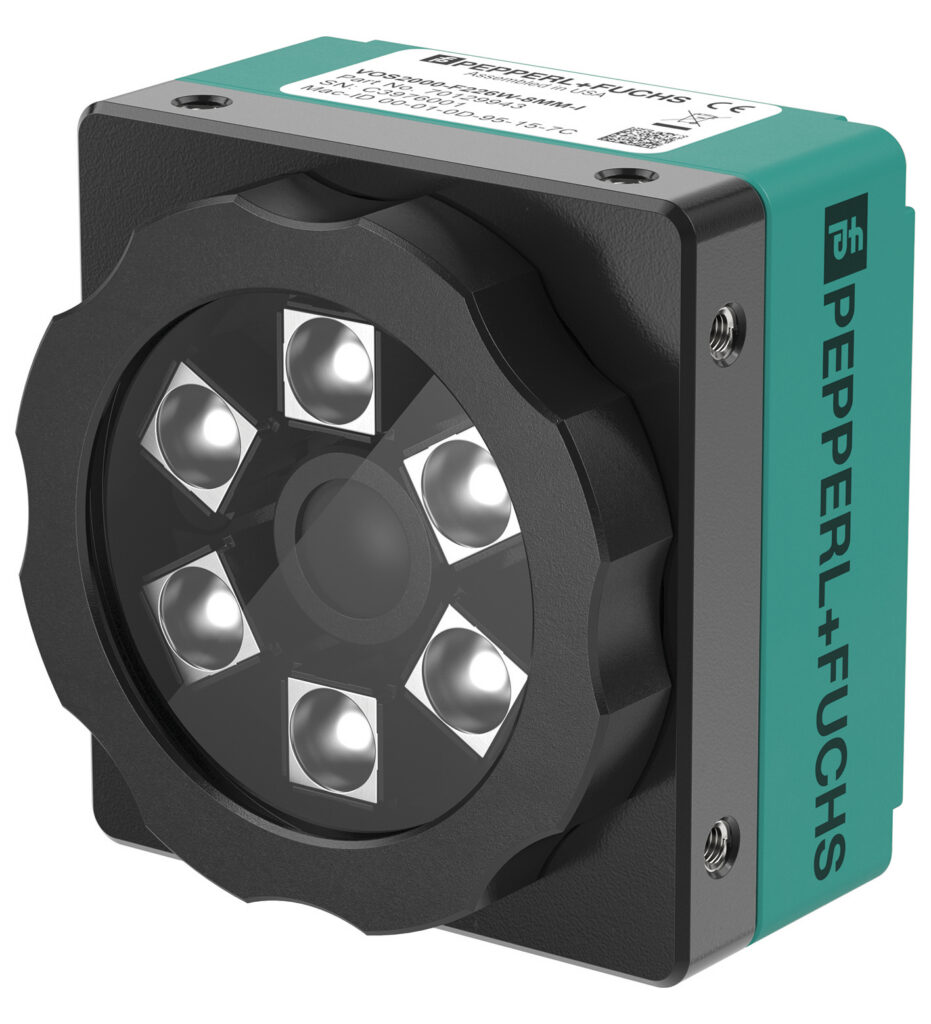

VOS2000-F226R-8MM-S
Pepperl+Fuchs Vision Sistemleri

VOS2000-F226R-8MM-S

Kısa kod
70111630
Ürün kodu
VOS2000-F226R-8MM-S
Marka
Pepperl+Fuchs
[{"label":"Işık kaynağı","value":"Integrated LED lightning , kırmızı"},{"label":"Picture detail","value":"dependant of operating distance (see manual)"},{"label":"Trigger mode","value":"Free-running or triggered externally"},{"label":"Focal Uzunluk","value":"8 mm"},{"label":"Resolution","value":"1280 x 960 pixels"},{"label":"Görüntü sensörü","value":"1/3" CMOS monochrom · Global Shutter · 3.75 µm pixel size"},{"label":"Lens","value":"M12 integrated lens"},{"label":"Parameter assignment","value":"Parameterization via PC user interface VCT Tool"},{"label":"Positioning and Guidance","value":"Based on Parts or product marks, en fazla four Locators to detect X,Y shift and rotation"},{"label":"Identification and Verification","value":"OCR, 1-D and 2-D codes"},{"label":"Detection & Pattern Matching","value":"Pixel-, contour- or edge count"},{"label":"Measuring","value":"Distance, angle, circle size (after calibration)"},{"label":"LED 1","value":"Steady mavi: sensor started, not set up · Steady yeşil: job loaded, ready for execution · Flashing yeşil: job loaded and being executed, capture in progress · Steady kırmızı: sensor fault"},{"label":"LED 2","value":"Flashing mavi: starting (duration yak. 20 seconds) · Steady yeşil: measurement successful (Pass) · Steady mavi: measurement borderline (Recycle) · Steady kırmızı: measurement unsuccessful (Fail)"},{"label":"LED 3","value":"Steady mavi: warm reset or restart · Steady kırmızı/yeşil/sarı: network activity"},{"label":"Focus setting","value":"Focus ayarlanabilir via centering"},{"label":"Çalışma gerilimi","value":"12 ... 30 V DC"},{"label":"Boşta besleme akımı","value":"300 m A"},{"label":"Interface type","value":"Ethernet"},{"label":"Protocol","value":"PROFINET IO · TCP/IP · Ether Net/IP"},{"label":"Fieldbus type","value":"PROFINET PN IO"},{"label":"Function","value":"Data interface (result output, job change), trigger interface"},{"label":"PROFINET specification","value":"V2.2"},{"label":"Real-time communication","value":"PROFINET IO Real-Time (RT)"},{"label":"PROFINET conformance class","value":"Conformance Class A"},{"label":"Refresh time","value":"typ. 128 ms ( depending on vision application )"},{"label":"Input data","value":"264 Byte - Generic"},{"label":"Output data","value":"264 Byte - Generic"},{"label":"Transfer rate","value":"100 MBit/s"},{"label":"Input type","value":"optically decoupled Inputs"},{"label":"Input voltage","value":"Logic low (OFF): 0 ... 3 V · Logic high (ON): 11 ... 30 V · Switching threshold: 12 V"},{"label":"Control input","value":"Image capture trigger + 2 general purpose inputs · 2 inputs can be used for job switching"},{"label":"Input current","value":"8 m A ( typical )"},{"label":"Internal protection circuit","value":"3 kΩ / 4000 V ( rms )"},{"label":"Switching delay","value":"Switch-on time (ON): 20 µs · Switch-off time (OFF): 10 µs · Image capture trigger: 62 µs (until image capture is triggered)"},{"label":"Çıkış tipi","value":"3 general purpose outputs , freely programmable , optically decoupled"},{"label":"Anahtarlama gerilimi","value":"max. 30 V"},{"label":"Anahtarlama akımı","value":"max. 100 m A each output"},{"label":"Emitted interference","value":"EN 61000-6-4:2007+A1:2011"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Ortam sıcaklığı","value":"0 ... 50 °C (32 ... 122 °F)"},{"label":"Storage temperature","value":"-20 ... 60 °C (-4 ... 140 °F)"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Bağlantı","value":"8-pin M12 socket A-coded 12-pin M12 socket"},{"label":"Gövde","value":"anodized aluminum"},{"label":"Optik yüzey","value":"Plastic pane"},{"label":"Montaj","value":"Mounting bracket"},{"label":"Ağırlık","value":"yak. 200 g"},{"label":"Yükseklik","value":"57 mm"},{"label":"Genişlik","value":"58 mm"},{"label":"Uzunluk","value":"61 mm"}]
Teklif İste İletişim

Vision sensör

  • Wide range of detection tools for flexible inspection tasks
  • Combinable vision tools for feature detection, completeness checking, code reading, text recognition and object position checking
  • 32 Jobs on-board can be saved
  • Integrated illumination
  • Mechanical focus adjustment
  • Easy integration with flexible programmable data output

Vision sensör for advanced object detection; resolution: 1280 x 960 pixels; Işık kaynağı: integrated LED flash, kırmızı; lens: M12 lens; focal Uzunluk: 8 mm

VOS2000-F226R-8MM-S

[{"label":"Işık kaynağı","value":"Integrated LED lightning , kırmızı"},{"label":"Picture detail","value":"dependant of operating distance (see manual)"},{"label":"Trigger mode","value":"Free-running or triggered externally"},{"label":"Focal Uzunluk","value":"8 mm"},{"label":"Resolution","value":"1280 x 960 pixels"},{"label":"Görüntü sensörü","value":"1/3" CMOS monochrom · Global Shutter · 3.75 µm pixel size"},{"label":"Lens","value":"M12 integrated lens"},{"label":"Parameter assignment","value":"Parameterization via PC user interface VCT Tool"},{"label":"Positioning and Guidance","value":"Based on Parts or product marks, en fazla four Locators to detect X,Y shift and rotation"},{"label":"Identification and Verification","value":"OCR, 1-D and 2-D codes"},{"label":"Detection & Pattern Matching","value":"Pixel-, contour- or edge count"},{"label":"Measuring","value":"Distance, angle, circle size (after calibration)"},{"label":"LED 1","value":"Steady mavi: sensor started, not set up · Steady yeşil: job loaded, ready for execution · Flashing yeşil: job loaded and being executed, capture in progress · Steady kırmızı: sensor fault"},{"label":"LED 2","value":"Flashing mavi: starting (duration yak. 20 seconds) · Steady yeşil: measurement successful (Pass) · Steady mavi: measurement borderline (Recycle) · Steady kırmızı: measurement unsuccessful (Fail)"},{"label":"LED 3","value":"Steady mavi: warm reset or restart · Steady kırmızı/yeşil/sarı: network activity"},{"label":"Focus setting","value":"Focus ayarlanabilir via centering"},{"label":"Çalışma gerilimi","value":"12 ... 30 V DC"},{"label":"Boşta besleme akımı","value":"300 m A"},{"label":"Interface type","value":"Ethernet"},{"label":"Protocol","value":"PROFINET IO · TCP/IP · Ether Net/IP"},{"label":"Fieldbus type","value":"PROFINET PN IO"},{"label":"Function","value":"Data interface (result output, job change), trigger interface"},{"label":"PROFINET specification","value":"V2.2"},{"label":"Real-time communication","value":"PROFINET IO Real-Time (RT)"},{"label":"PROFINET conformance class","value":"Conformance Class A"},{"label":"Refresh time","value":"typ. 128 ms ( depending on vision application )"},{"label":"Input data","value":"264 Byte - Generic"},{"label":"Output data","value":"264 Byte - Generic"},{"label":"Transfer rate","value":"100 MBit/s"},{"label":"Input type","value":"optically decoupled Inputs"},{"label":"Input voltage","value":"Logic low (OFF): 0 ... 3 V · Logic high (ON): 11 ... 30 V · Switching threshold: 12 V"},{"label":"Control input","value":"Image capture trigger + 2 general purpose inputs · 2 inputs can be used for job switching"},{"label":"Input current","value":"8 m A ( typical )"},{"label":"Internal protection circuit","value":"3 kΩ / 4000 V ( rms )"},{"label":"Switching delay","value":"Switch-on time (ON): 20 µs · Switch-off time (OFF): 10 µs · Image capture trigger: 62 µs (until image capture is triggered)"},{"label":"Çıkış tipi","value":"3 general purpose outputs , freely programmable , optically decoupled"},{"label":"Anahtarlama gerilimi","value":"max. 30 V"},{"label":"Anahtarlama akımı","value":"max. 100 m A each output"},{"label":"Emitted interference","value":"EN 61000-6-4:2007+A1:2011"},{"label":"Noise immunity","value":"EN 61000-6-2:2005"},{"label":"Ortam sıcaklığı","value":"0 ... 50 °C (32 ... 122 °F)"},{"label":"Storage temperature","value":"-20 ... 60 °C (-4 ... 140 °F)"},{"label":"Koruma sınıfı","value":"IP67"},{"label":"Bağlantı","value":"8-pin M12 socket A-coded 12-pin M12 socket"},{"label":"Gövde","value":"anodized aluminum"},{"label":"Optik yüzey","value":"Plastic pane"},{"label":"Montaj","value":"Mounting bracket"},{"label":"Ağırlık","value":"yak. 200 g"},{"label":"Yükseklik","value":"57 mm"},{"label":"Genişlik","value":"58 mm"},{"label":"Uzunluk","value":"61 mm"}]

Doküman henüz eklenmedi.

Bu ürün için stok, termin ve teknik destek bilgisi almak üzere bizimle iletişime geçin.
